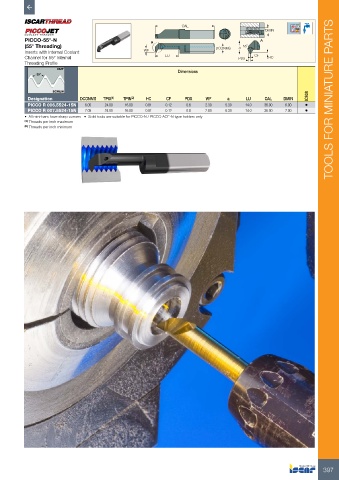

Page 399 - ISCAR(TURNING-CATALOG-42-2022)

OAL DMIN
PICCO-55°-N A A
(55° Threading) DCONMS a 55˚

Inserts with Internal Coolant WF
Channel for 55° Internal LU PDX CF HC
Threading Profile
NUT Dimensions
55°

SCREW
Designation DCONMS TPIX (1) TPIN (2) HC CF PDX WF a LU OAL DMIN IC908 TOOLS FOR MINIATURE PARTS
PICCO R 006.5524-15N 6.05 24.00 16.00 0.81 0.12 0.8 2.30 5.30 14.0 36.00 6.00 •
PICCO R 007.5524-15N 7.05 24.00 16.00 0.81 0.12 0.8 2.80 6.30 14.0 36.00 7.00 •
• All mini-bars have sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Threads per inch maximum
(2) Threads per inch minimum

397
