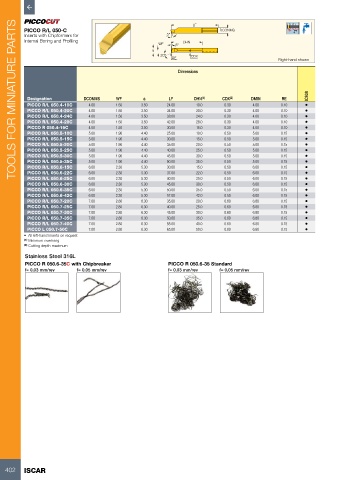

Page 404 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS
PICCO R/L 050-C LF DCONMS
Inserts with Chipformers for 5°
Internal Boring and Profiling OHN
WF 8°
a
20° CDX
RE Right-hand shown
Dimensions

IC908
Designation DCONMS WF a LF OHN (1) CDX (2) DMIN RE
PICCO R/L 050.4-10C 4.00 1.50 3.50 24.00 10.0 0.30 4.00 0.10 •
PICCO R/L 050.4-20C 4.00 1.50 3.50 34.00 20.0 0.30 4.00 0.10 •
PICCO R/L 050.4-24C 4.00 1.50 3.50 38.00 24.0 0.30 4.00 0.10 •
PICCO R/L 050.4-28C 4.00 1.50 3.50 42.00 28.0 0.30 4.00 0.10 •
PICCO R 050.4-16C 4.00 1.50 3.50 30.00 16.0 0.30 4.00 0.10 •
PICCO R/L 050.5-10C 5.00 1.90 4.40 25.00 10.0 0.50 5.00 0.15 •
PICCO R/L 050.5-15C 5.00 1.90 4.40 30.00 15.0 0.50 5.00 0.15 •
PICCO R/L 050.5-20C 5.00 1.90 4.40 35.00 20.0 0.50 5.00 0.15 •
PICCO R/L 050.5-25C 5.00 1.90 4.40 40.00 25.0 0.50 5.00 0.15 •
PICCO R/L 050.5-30C 5.00 1.90 4.40 45.00 30.0 0.50 5.00 0.15 •
PICCO R/L 050.5-35C 5.00 1.90 4.40 50.00 35.0 0.50 5.00 0.15 •
PICCO R/L 050.6-15C 6.00 2.30 5.30 30.00 15.0 0.50 6.00 0.15 •
PICCO R/L 050.6-22C 6.00 2.30 5.30 37.00 22.0 0.50 6.00 0.15 •
PICCO R/L 050.6-25C 6.00 2.30 5.30 40.00 25.0 0.50 6.00 0.15 •
PICCO R/L 050.6-30C 6.00 2.30 5.30 45.00 30.0 0.50 6.00 0.15 •
PICCO R/L 050.6-35C 6.00 2.30 5.30 50.00 35.0 0.50 6.00 0.15 •
PICCO R/L 050.6-42C 6.00 2.30 5.30 57.00 42.0 0.50 6.00 0.15 •
PICCO R/L 050.7-20C 7.00 2.80 6.30 35.00 20.0 0.60 6.80 0.15 •
PICCO R/L 050.7-25C 7.00 2.80 6.30 40.00 25.0 0.60 6.80 0.15 •
PICCO R/L 050.7-30C 7.00 2.80 6.30 45.00 30.0 0.60 6.80 0.15 •
PICCO R/L 050.7-35C 7.00 2.80 6.30 50.00 35.0 0.60 6.80 0.15 •
PICCO R/L 050.7-40C 7.00 2.80 6.30 55.00 40.0 0.60 6.80 0.15 •
PICCO L 050.7-50C 7.00 2.80 6.30 65.00 50.0 0.60 6.80 0.15 •
• All left-hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum
Stainless Steel 316L
PICCO R 050.6-35C with Chipbreaker PICCO R 050.6-35 Standard
f= 0.03 mm/rev f= 0.05 mm/rev f= 0.03 mm/rev f= 0.05 mm/rev
