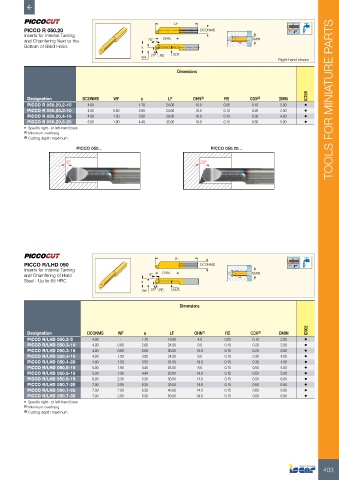

Page 405 - ISCAR(TURNING-CATALOG-42-2022)

LF
PICCO R 050.20 DCONMS
Inserts for Internal Turning
and Chamfering Next to the 20° OHN DMIN
Bottom of Blind Holes a
CDX
WF 20° RE
Right-hand shown
Dimensions

IC908
Designation DCONMS WF a LF OHN (1) RE CDX (2) DMIN TOOLS FOR MINIATURE PARTS
PICCO R 050.20.2-10 4.00 - 1.70 24.00 10.0 0.05 0.10 2.00 •
PICCO R 050.20.3-10 4.00 0.60 2.60 24.00 10.0 0.10 0.20 2.80 •
PICCO R 050.20.4-16 4.00 1.50 3.50 30.00 16.0 0.10 0.30 4.00 •
PICCO R 050.20.5-20 5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
PICCO 050... PICCO 050.20...

8° 20°

LF
PICCO R/LHD 050 DCONMS
Inserts for Internal Turning
and Chamfering of Hard 8° OHN DMIN
Steel - Up to 65 HRC a
WF 20° RE CDX

Dimensions

IC902
Designation DCONMS WF a LF OHN (1) RE CDX (2) DMIN
PICCO R/LHD 050.2-5 4.00 - 1.70 19.00 4.0 0.05 0.10 2.00 •
PICCO R/LHD 050.3-10 4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80 •
PICCO R/LHD 050.3-16 4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80 •
PICCO R/LHD 050.4-10 4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00 •
PICCO R/LHD 050.4-20 4.00 1.50 3.50 34.00 19.0 0.10 0.30 4.00 •
PICCO R/LHD 050.5-10 5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00 •
PICCO R/LHD 050.5-15 5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00 •
PICCO R/LHD 050.6-15 6.00 2.30 5.30 30.00 14.0 0.15 0.50 6.00 •
PICCO R/LHD 050.7-20 7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80 •
PICCO R/LHD 050.7-25 7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80 •
PICCO R/LHD 050.7-35 7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum

403
