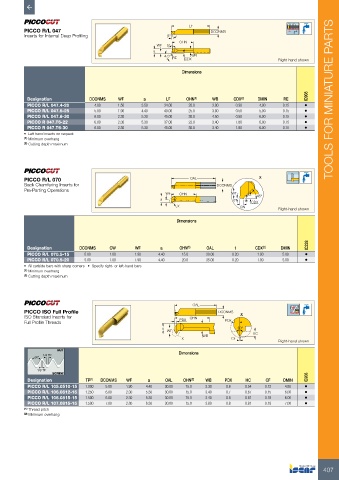

Page 409 - ISCAR(TURNING-CATALOG-42-2022)

PICCO R/L 047 LF DCONMS
Inserts for Internal Deep Profiling 5°
OHN
WF 8°
a
47° RE CDX WB Right-hand shown

Dimensions

IC908
Designation DCONMS WF a LF OHN (1) WB CDX (2) DMIN RE TOOLS FOR MINIATURE PARTS
PICCO R/L 047.4-20 4.00 1.50 3.50 34.00 20.0 3.00 0.30 4.00 0.15 •
PICCO R/L 047.5-25 5.00 1.90 4.40 40.00 25.0 3.80 0.50 5.00 0.15 •
PICCO R/L 047.6-30 6.00 2.30 5.30 45.00 30.0 4.50 0.50 6.00 0.15 •
PICCO R 047.T6-22 6.00 2.30 5.30 37.00 22.0 3.40 1.80 6.00 0.15 •
PICCO R 047.T6-30 6.00 2.30 5.30 45.00 30.0 3.40 1.80 6.00 0.15 •
• Left hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum

PICCO R/L 070 OAL X
Back Chamfering Inserts for DCONMS
Pre-Parting Operations
WF OHN WF 45°
a 8° t CDX
X CW
Right-hand shown
Dimensions

IC228
Designation DCONMS CW WF a OHN (1) OAL t CDX (2) DMIN
PICCO R/L 070.5-15 5.00 1.00 1.90 4.40 15.0 30.00 0.20 1.00 5.00 •
PICCO R/L 070.5-20 5.00 1.00 1.90 4.40 20.0 35.00 0.20 1.00 5.00 •
• All carbide bars with sharp corners • Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum

OAL

PICCO ISO Full Profile DCONMS X
ISO Standard Inserts for OHN
Full Profile Threads PDX PDX
a 60°
WF
WB HC
X CF
Right-hand shown
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TP (1) DCONMS WF a OAL OHN (2) WB PDX HC CF DMIN IC908
PICCO R/L 105.0510-15 1.000 5.00 1.90 4.40 30.00 15.0 3.30 0.6 0.54 0.12 4.80 •
PICCO R/L 106.0612-15 1.250 6.00 2.30 5.30 30.00 15.0 3.40 0.7 0.67 0.15 6.00 •
PICCO R/L 106.0815-15 1.500 6.00 2.30 5.30 30.00 15.0 3.40 0.8 0.81 0.18 6.00 •
PICCO R/L 107.0815-15 1.500 7.00 2.80 6.30 30.00 15.0 3.80 0.8 0.81 0.18 7.00 •
(1) Thread pitch
(2) Minimum overhang

407
