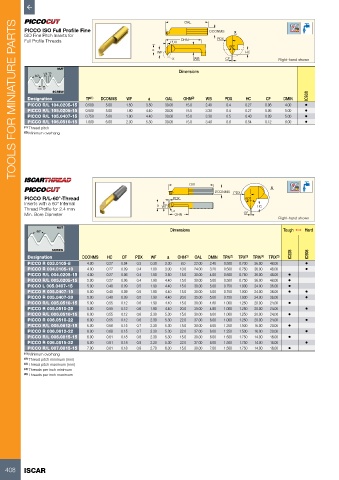

Page 410 - ISCAR(TURNING-CATALOG-42-2022)

OAL
TOOLS FOR MINIATURE PARTS
PICCO ISO Full Profile Fine DCONMS X
ISO Fine Pitch Inserts for
Full Profile Threads PDX OHN PDX
60°
a
WF HC
X WB CF Right-hand shown
NUT
1/4 TP Dimensions
60°
1/8 TP
SCREW
Designation TP (1) DCONMS WF a OAL OHN (2) WB PDX HC CF DMIN IC908
PICCO R/L 104.0205-15 0.500 5.00 1.50 3.50 30.00 15.0 2.40 0.4 0.27 0.06 4.00 •
PICCO R/L 105.0205-15 0.500 5.00 1.90 4.40 30.00 15.0 3.30 0.4 0.27 0.06 5.00 •
PICCO R/L 105.0407-15 0.750 5.00 1.90 4.40 30.00 15.0 3.30 0.5 0.40 0.09 5.00 •
PICCO R/L 106.0510-15 1.000 6.00 2.30 5.30 30.00 15.0 3.40 0.6 0.54 0.12 6.00 •
(1) Thread pitch
(2) Minimum overhang

OAL
DCONMS PDX X

PICCO R/L-60°-Thread PDX 60°
Inserts with a 60° Internal a WF HC
Thread Profile for 2.4 mm x
Min. Bore Diameter OHN CF
Right-hand shown

NUT
60° Dimensions Tough 1 Hard

SCREW
Designation DCONMS HC CF PDX WF a OHN (1) OAL DMIN TPN (2) TPX (3) TPIN (4) TPIX (5) IC228 IC908
PICCO R 003.0105-8 4.00 0.27 0.04 0.3 0.30 2.30 8.0 22.00 2.40 0.500 0.700 36.00 48.00 •
PICCO R 004.0105-10 4.00 0.27 0.09 0.4 1.00 3.00 10.0 24.00 3.20 0.500 0.750 36.00 48.00 •
PICCO R/L 004.0205-15 4.00 0.27 0.06 0.4 1.50 3.50 15.0 30.00 4.00 0.500 0.750 36.00 48.00 •
PICCO R/L 005.0205-15 5.00 0.27 0.06 0.4 1.90 4.40 15.0 30.00 5.00 0.500 0.750 36.00 48.00 •
PICCO L 005.0407-15 5.00 0.40 0.09 0.5 1.90 4.40 15.0 30.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R 005.0407-15 5.00 0.40 0.09 0.5 1.90 4.40 15.0 30.00 5.00 0.750 1.000 24.00 36.00 • •
PICCO R 005.0407-20 5.00 0.40 0.09 0.5 1.90 4.40 20.0 35.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R/L 005.0510-15 5.00 0.55 0.12 0.6 1.90 4.40 15.0 30.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 005.0510-20 5.00 0.55 0.12 0.6 1.90 4.40 20.0 35.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R/L 006.0510-15 6.00 0.55 0.12 0.6 2.30 5.30 15.0 30.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-22 6.00 0.55 0.12 0.6 2.30 5.30 22.0 37.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R/L 006.0612-15 6.00 0.68 0.15 0.7 2.30 5.30 15.0 30.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R 006.0612-22 6.00 0.68 0.15 0.7 2.30 5.30 22.0 37.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R/L 006.0815-15 6.00 0.81 0.18 0.8 2.30 5.30 15.0 30.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R 006.0815-22 6.00 0.81 0.18 0.8 2.30 5.30 22.0 37.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R/L 007.0815-15 7.00 0.81 0.18 0.8 2.70 6.30 15.0 30.00 7.00 1.500 1.750 14.00 16.00 •
(1) Minimum overhang
(2) Thread pitch minimum (mm)
(3) Thread pitch maximum (mm)
(4) Threads per inch minimum
(5) Threads per inch maximum
