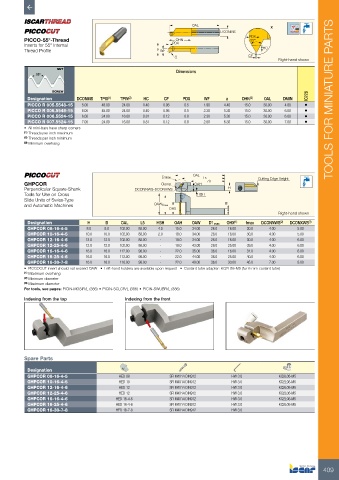

P. 411

OAL
                                                                              DCONMS             X
          PICCO-55°-Thread                                     OHN                       PDX
                                                                                         55°
          Inserts for 55° Internal                            PDX                            HC
          Thread Profile                                a  WF
                                                               x                        CF
                                                                                                   Right-hand shown
                     NUT                                       Dimensions
              55°


                   SCREW
           Designation      DCONMS  TPIX (1)  TPIN (2)  HC  CF   PDX     WF     a     OHN (3)  OAL  DMIN     IC228    TOOLS FOR MINIATURE PARTS
           PICCO R 005.5548-15  5.00  48.00  24.00  0.40  0.06    0.5    1.90   4.40   15.0   30.00  4.80   •
           PICCO R 006.5548-15  6.00  48.00  24.00  0.40  0.06    0.5    2.30   5.30   15.0   30.00  6.00   •
           PICCO R 006.5524-15  6.00  24.00  16.00  0.81  0.12    0.8    2.30   5.30   15.0   30.00  6.00   •
           PICCO R 007.5524-15  7.00  24.00  16.00  0.81  0.12    0.8    2.80   6.30   15.0   30.00  7.00   •
          •  All mini-bars have sharp corners
          (1)  Threads per inch maximum
          (2)  Threads per inch minimum
          (3)  Minimum overhang




                                                          D1max      OAL  L5                Cutting Edge Height

          GHPCOR                                          Clamp      OAH  70
          Perpendicular Square-Shank            DCONNWS-DCONXWS                  H
          Tools for Use on Cross                                      HBH
          Slide Units of Swiss-Type
          and Automatic Machines                       OAW fmax                 B
                                                            OHX
                                                                                                   Right-hand shown
           Designation          H     B     OAL   L5    HBH   OAH   OAW   D1 max  OHX (1)  fmax  DCONNWS (2)  DCONXWS (3)
           GHPCOR 08-16-4-5    8.0    8.0  102.00  88.00  4.0  15.0  34.00  26.0  16.00  30.0   4.00      5.00
           GHPCOR 10-16-4-5    10.0  10.0  102.00  88.00  2.0  18.0  34.00  26.0  16.00  30.0   4.00      5.00
           GHPCOR 12-16-4-6    12.0  12.0  102.00  88.00  -    18.0  34.00  26.0  16.00  30.0   4.00      6.00
           GHPCOR 12-25-4-6    12.0  12.0  102.00  88.00  -    18.0  43.00  26.0  25.00  39.0   4.00      6.00
           GHPCOR 16-16-4-6    16.0  16.0  112.00  98.00  -    22.0  35.00  36.0  16.00  31.0   4.00      6.00
           GHPCOR 16-25-4-6    16.0  16.0  112.00  98.00  -    22.0  44.00  36.0  25.00  40.0   4.00      6.00
           GHPCOR 16-30-7-8    16.0  16.0  116.00  98.00  -    22.0  49.00  36.0  30.00  45.0   7.00      8.00
          •  PICCOCUT insert should not exceed OAW   •  Left-hand holders are available upon request   •  Coolant tube adapter: KQ2L06-M5 (for 6 mm coolant tube)
          (1)  Maximum overhang
          (2)  Minimum diameter
          (3)  Maximum diameter
          For tools, see pages: PICIN-MGSIR/L (386) • PICIN-SCLCR/L (386) • PICIN-SWUBR/L (386)
          Indexing from the top              Indexing from the front











          Spare Parts
           Designation
           GHPCOR 08-16-4-5                HED 08            SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 10-16-4-5                HED 10            SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 12-16-4-6                HED 12            SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 12-25-4-6                HED 12            SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 16-16-4-6               HED 16-4-6         SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 16-25-4-6               HED 16-4-6         SR M4X14 DIN912      HW 3.0           KQ2L06-M5
           GHPCOR 16-30-7-8               HED 16-7-8         SR M4X14 DIN912      HW 3.0
