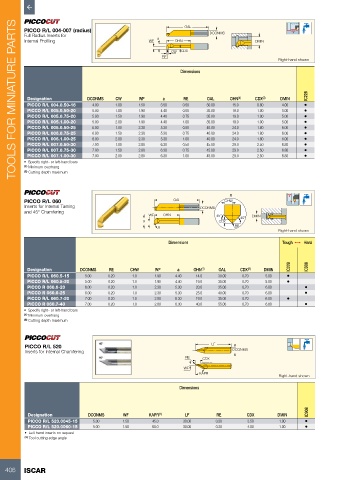

Page 408 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS
PICCO R/L 004-007 (radius) OAL
Full Radius Inserts for DCONMS
Internal Profiling WF a OHN DMIN

CW CDX
RE Right-hand shown

Dimensions

IC228
Designation DCONMS CW WF a RE OAL OHN (1) CDX (2) DMIN
PICCO R/L 004.0.50-16 4.00 1.00 1.50 3.50 0.50 30.00 15.0 0.80 4.00 •
PICCO R/L 005.0.50-20 5.00 1.00 1.90 4.40 0.50 35.00 19.0 1.00 5.00 •
PICCO R/L 005.0.75-20 5.00 1.50 1.90 4.40 0.75 35.00 19.0 1.00 5.00 •
PICCO R/L 005.1.00-20 5.00 2.00 1.90 4.40 1.00 35.00 19.0 1.00 5.00 •
PICCO R/L 006.0.50-25 6.00 1.00 2.30 5.30 0.50 40.00 24.0 1.80 6.00 •
PICCO R/L 006.0.75-25 6.00 1.50 2.30 5.30 0.75 40.00 24.0 1.80 6.00 •
PICCO R/L 006.1.00-25 6.00 2.00 2.30 5.30 1.00 40.00 24.0 1.80 6.00 •
PICCO R/L 007.0.50-30 7.00 1.00 2.80 6.30 0.50 45.00 29.0 2.50 6.80 •
PICCO R/L 007.0.75-30 7.00 1.50 2.80 6.30 0.75 45.00 29.0 2.50 6.80 •
PICCO R/L 007.1.00-30 7.00 2.00 2.80 6.30 1.00 45.00 29.0 2.50 6.80 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum

X
PICCO R/L 060 OAL CHW
Inserts for Internal Turning DCONMS
and 45° Chamfering
WF OHN 45° 45° DMIN
a CDX
X RE
Right-hand shown
Dimensions Tough 1 Hard

IC228 IC908
Designation DCONMS RE CHW WF a OHN (1) OAL CDX (2) DMIN
PICCO R/L 060.5-15 5.00 0.20 1.0 1.90 4.40 14.0 30.00 0.70 5.00 •
PICCO R/L 060.5-20 5.00 0.20 1.0 1.90 4.40 19.0 35.00 0.70 5.00 •
PICCO R 060.6-20 6.00 0.20 1.0 2.30 5.30 20.0 35.00 0.70 6.00 •
PICCO R 060.6-25 6.00 0.20 1.0 2.30 5.30 25.0 40.00 0.70 6.00 •
PICCO R/L 060.7-20 7.00 0.20 1.0 2.80 6.30 19.0 35.00 0.70 6.80 •
PICCO R 060.7-40 7.00 0.20 1.0 2.80 6.30 40.0 55.00 0.70 6.80 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum

PICCO R/L 520 LF
Inserts for Internal Chamfering DCONMS
RE CDX
WF
KAPR
Right-hand shown
Dimensions

IC908
Designation DCONMS WF KAPR (1) LF RE CDX DMIN
PICCO R/L 520.0045-15 5.00 1.50 45.0 30.00 0.20 3.50 1.00 •
PICCO R/L 520.0060-15 5.00 1.50 60.0 30.00 0.20 4.00 1.00 •
• Left hand inserts on request
(1) Tool cutting edge angle

406 ISCAR
