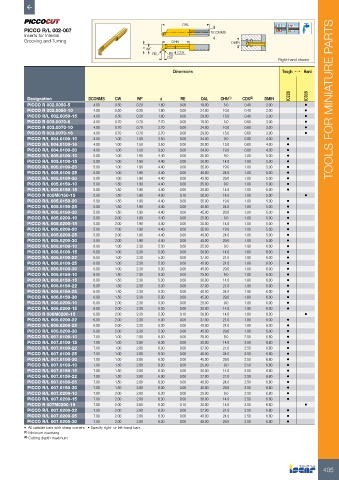

Page 407 - ISCAR(TURNING-CATALOG-42-2022)

OAL
PICCO R/L 002-007 DCONMS
Inserts for Internal
Grooving and Turning OHN DMIN
a WF
RE RE CDX
CW
Right-hand shown
Dimensions Tough 1 Hard

IC228 IC908
Designation DCONMS CW WF a RE OAL OHN (1) CDX (2) DMIN TOOLS FOR MINIATURE PARTS
PICCO R 002.0050-5 4.00 0.50 0.20 1.80 0.00 19.00 5.0 0.40 2.00 •
PICCO R 002.0050-10 4.00 0.50 0.20 1.80 0.00 24.00 10.0 0.40 2.00 •
PICCO R/L 002.0050-15 4.00 0.50 0.20 1.80 0.00 29.00 15.0 0.40 2.00 •
PICCO R 003.0070-5 4.00 0.70 0.70 2.70 0.00 19.00 5.0 0.60 3.00 •
PICCO R 003.0070-10 4.00 0.70 0.70 2.70 0.00 24.00 10.0 0.60 3.00 •
PICCO R 003.0070-16 4.00 0.70 0.70 2.70 0.00 29.00 15.0 0.60 3.00 •
PICCO R/L 004.0100-10 4.00 1.00 1.50 3.50 0.00 24.00 9.0 0.80 4.00 •
PICCO R/L 004.0100-16 4.00 1.00 1.50 3.50 0.00 30.00 15.0 0.80 4.00 •
PICCO R/L 004.0100-20 4.00 1.00 1.50 3.50 0.00 34.00 19.0 0.80 4.00 •
PICCO R/L 005.0100-10 5.00 1.00 1.90 4.40 0.00 25.00 9.0 1.00 5.00 •
PICCO R/L 005.0100-15 5.00 1.00 1.90 4.40 0.00 30.00 14.0 1.00 5.00 •
PICCO R/L 005.0100-20 5.00 1.00 1.90 4.40 0.00 35.00 19.0 1.00 5.00 •
PICCO R/L 005.0100-25 5.00 1.00 1.90 4.40 0.00 40.00 24.0 1.00 5.00 •
PICCO R/L 005.0100-30 5.00 1.00 1.90 4.40 0.00 45.00 29.0 1.00 5.00 •
PICCO R/L 005.0150-10 5.00 1.50 1.90 4.40 0.00 25.00 9.0 1.00 5.00 •
PICCO R/L 005.0150-15 5.00 1.50 1.90 4.40 0.00 30.00 14.0 1.00 5.00 •
PICCO R 005M0150-15 5.00 1.50 1.90 4.00 0.10 30.00 14.0 1.00 5.00 •
PICCO R/L 005.0150-20 5.00 1.50 1.90 4.40 0.00 35.00 19.0 1.00 5.00 •
PICCO R/L 005.0150-25 5.00 1.50 1.90 4.40 0.00 40.00 24.0 1.00 5.00 •
PICCO R/L 005.0150-30 5.00 1.50 1.90 4.40 0.00 45.00 29.0 1.00 5.00 •
PICCO R/L 005.0200-10 5.00 2.00 1.90 4.40 0.00 25.00 9.0 1.00 5.00 •
PICCO R/L 005.0200-15 5.00 2.00 1.90 4.40 0.00 30.00 14.0 1.00 5.00 •
PICCO R/L 005.0200-20 5.00 2.00 1.90 4.40 0.00 35.00 19.0 1.00 5.00 •
PICCO R/L 005.0200-25 5.00 2.00 1.90 4.40 0.00 40.00 24.0 1.00 5.00 •
PICCO R/L 005.0200-30 5.00 2.00 1.90 4.40 0.00 45.00 29.0 1.00 5.00 •
PICCO R/L 006.0100-10 6.00 1.00 2.30 5.30 0.00 25.00 9.0 1.80 6.00 •
PICCO R/L 006.0100-15 6.00 1.00 2.30 5.30 0.00 30.00 14.0 1.80 6.00 •
PICCO R/L 006.0100-22 6.00 1.00 2.30 5.30 0.00 37.00 21.0 1.80 6.00 •
PICCO R/L 006.0100-25 6.00 1.00 2.30 5.30 0.00 40.00 24.0 1.80 6.00 •
PICCO R/L 006.0100-30 6.00 1.00 2.30 5.30 0.00 45.00 29.0 1.80 6.00 •
PICCO R/L 006.0150-10 6.00 1.50 2.30 5.30 0.00 25.00 9.0 1.80 6.00 •
PICCO R/L 006.0150-15 6.00 1.50 2.30 5.30 0.00 30.00 14.0 1.80 6.00 •
PICCO R/L 006.0150-22 6.00 1.50 2.30 5.30 0.00 37.00 21.0 1.80 6.00 •
PICCO R/L 006.0150-25 6.00 1.50 2.30 5.30 0.00 40.00 24.0 1.80 6.00 •
PICCO R/L 006.0150-30 6.00 1.50 2.30 5.30 0.00 45.00 29.0 1.80 6.00 •
PICCO R/L 006.0200-10 6.00 2.00 2.30 5.30 0.00 25.00 9.0 1.80 6.00 •
PICCO R/L 006.0200-15 6.00 2.00 2.30 5.30 0.00 30.00 14.0 1.80 6.00 •
PICCO R 006M0200-15 6.00 2.00 2.30 5.30 0.10 30.00 14.0 1.80 6.00 •
PICCO R/L 006.0200-22 6.00 2.00 2.30 5.30 0.00 37.00 21.0 1.80 6.00 •
PICCO R/L 006.0200-25 6.00 2.00 2.30 5.30 0.00 40.00 24.0 1.80 6.00 •
PICCO R/L 006.0200-30 6.00 2.00 2.30 5.30 0.00 45.00 29.0 1.80 6.00 •
PICCO R/L 007.0100-10 7.00 1.00 2.80 6.30 0.00 25.00 9.0 2.50 6.80 •
PICCO R/L 007.0100-15 7.00 1.00 2.80 6.30 0.00 30.00 14.0 2.50 6.80 •
PICCO R/L 007.0100-22 7.00 1.00 2.80 6.30 0.00 37.00 21.0 2.50 6.80 •
PICCO R/L 007.0100-25 7.00 1.00 2.80 6.30 0.00 40.00 24.0 2.50 6.80 •
PICCO R/L 007.0100-30 7.00 1.00 2.80 6.30 0.00 45.00 29.0 2.50 6.80 •
PICCO R/L 007.0150-10 7.00 1.50 2.80 6.30 0.00 25.00 9.0 2.50 6.80 •
PICCO R/L 007.0150-15 7.00 1.50 2.80 6.30 0.00 30.00 14.0 2.50 6.80 •
PICCO R/L 007.0150-22 7.00 1.50 2.80 6.30 0.00 37.00 21.0 2.50 6.80 •
PICCO R/L 007.0150-25 7.00 1.50 2.80 6.30 0.00 40.00 24.0 2.50 6.80 •
PICCO R/L 007.0150-30 7.00 1.50 2.80 6.30 0.00 45.00 29.0 2.50 6.80 •
PICCO R/L 007.0200-10 7.00 2.00 2.80 6.30 0.00 25.00 9.0 2.50 6.80 •
PICCO R/L 007.0200-15 7.00 2.00 2.80 6.30 0.00 30.00 14.0 2.50 6.80 •
PICCO R 007M0200-15 7.00 2.00 2.80 6.30 0.10 30.00 14.0 2.50 6.80 •
PICCO R/L 007.0200-22 7.00 2.00 2.80 6.30 0.00 37.00 21.0 2.50 6.80 •
PICCO R/L 007.0200-25 7.00 2.00 2.80 6.30 0.00 40.00 24.0 2.50 6.80 •
PICCO R/L 007.0200-30 7.00 2.00 2.80 6.30 0.00 45.00 29.0 2.50 6.80 •
• All carbide bars with sharp corners • Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
