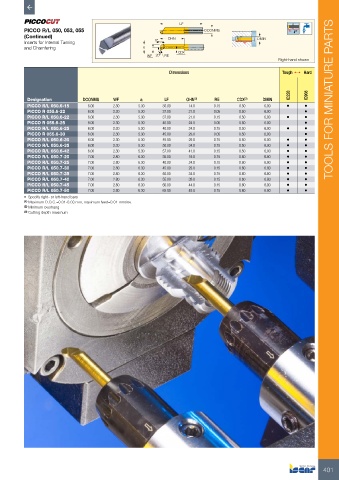

Page 403 - ISCAR(TURNING-CATALOG-42-2022)

LF
PICCO R/L 050, 053, 055 DCONMS
(Continued) OHN DMIN
Inserts for Internal Turning 8°
and Chamfering a
CDX
WF 20° RE
Right-hand shown

Dimensions Tough 1 Hard

IC228 IC908
Designation DCONMS WF a LF OHN (2) RE CDX (3) DMIN TOOLS FOR MINIATURE PARTS
PICCO R/L 050.6-15 6.00 2.30 5.30 30.00 14.0 0.15 0.50 6.00 • •
PICCO R 055.6-22 6.00 2.30 5.30 37.00 21.0 0.05 0.50 6.00 •
PICCO R/L 050.6-22 6.00 2.30 5.30 37.00 21.0 0.15 0.50 6.00 • •
PICCO R 055.6-25 6.00 2.30 5.30 40.00 24.0 0.05 0.50 6.00 •
PICCO R/L 050.6-25 6.00 2.30 5.30 40.00 24.0 0.15 0.50 6.00 • •
PICCO R 055.6-30 6.00 2.30 5.30 45.00 29.0 0.05 0.50 6.00 •
PICCO R/L 050.6-30 6.00 2.30 5.30 45.00 29.0 0.15 0.50 6.00 • •
PICCO R/L 050.6-35 6.00 2.30 5.30 50.00 34.0 0.15 0.50 6.00 • •
PICCO R/L 050.6-42 6.00 2.30 5.30 57.00 41.0 0.15 0.50 6.00 • •
PICCO R/L 050.7-20 7.00 2.80 6.30 35.00 19.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-25 7.00 2.80 6.30 40.00 24.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-30 7.00 2.80 6.30 45.00 29.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-35 7.00 2.80 6.30 50.00 34.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-40 7.00 2.80 6.30 55.00 39.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-45 7.00 2.80 6.30 60.00 44.0 0.15 0.60 6.80 • •
PICCO R/L 050.7-50 7.00 2.80 6.30 65.00 49.0 0.15 0.60 6.80 • •
• Specify right- or left-hand bars
(1) Maximum D.O.C.=0.01-0.03 mm, maximum feed=0.01 mm/rev.
(2) Minimum overhang
(3) Cutting depth maximum

401
