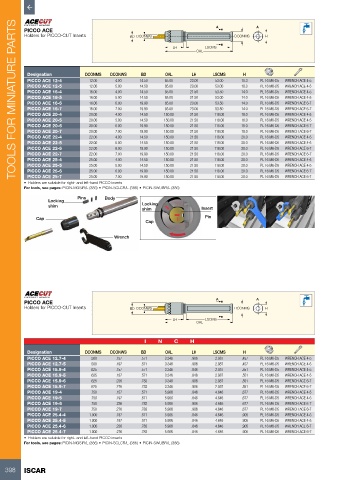

TOOLS FOR MINIATURE PARTS
PICCO ACE A A
Holders for PICCO-CUT Inserts BD DCONWS DCONMS H
LH LSCMS
OAL
Designation DCONMS DCONWS BD OAL LH LSCMS H
PICCO ACE 12-4 12.00 4.00 14.50 85.00 23.00 53.00 10.3 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 12-5 12.00 5.00 14.50 85.00 23.00 53.00 10.3 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 16-4 16.00 4.00 14.50 85.00 21.50 53.50 14.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 16-5 16.00 5.00 14.50 85.00 21.50 53.00 14.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 16-6 16.00 6.00 19.90 85.00 23.00 53.50 14.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 16-7 16.00 7.00 19.90 85.00 23.00 53.50 14.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 20-4 20.00 4.00 14.50 150.00 21.50 118.00 18.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 20-5 20.00 5.00 14.50 150.00 21.50 118.00 18.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 20-6 20.00 6.00 19.90 150.00 21.50 118.00 18.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 20-7 20.00 7.00 19.90 150.00 21.50 118.00 18.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 22-4 22.00 4.00 14.50 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 22-5 22.00 5.00 14.50 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 22-6 22.00 6.00 19.90 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 22-7 22.00 7.00 19.90 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 25-4 25.00 4.00 14.50 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 25-5 25.00 5.00 14.50 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 25-6 25.00 6.00 19.90 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 25-7 25.00 7.00 19.90 150.00 21.50 118.00 20.0 PL 16 M6-D5 WRENCH ACE 6-7
• Holders are suitable for right- and left-hand PICCO inserts
For tools, see pages: PICIN-MGSIR/L (386) • PICIN-SCLCR/L (386) • PICIN-SWUBR/L (386)
Pins Body
Locking
shim Locking
shim Insert
Cap Pin
Cap
Wrench
PICCO ACE A A
Holders for PICCO-CUT Inserts BD DCONWS DCONMS H
LH LSCMS
OAL
I N C H
Designation DCONMS DCONWS BD OAL LH LSCMS H
PICCO ACE 12.7-4 .500 .157 .571 3.346 .906 2.087 .457 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 12.7-5 .500 .197 .571 3.346 .906 2.087 .457 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 15.9-4 .625 .157 .571 3.346 .846 2.087 .551 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 15.9-5 .625 .197 .571 3.346 .846 2.087 .551 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 15.9-6 .625 .236 .783 3.346 .906 2.087 .551 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 15.9-7 .625 .276 .783 3.346 .906 2.087 .551 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 19-4 .750 .157 .571 5.906 .846 4.646 .677 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 19-5 .750 .197 .571 5.906 .846 4.646 .677 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 19-6 .750 .236 .783 5.906 .906 4.646 .677 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 19-7 .750 .276 .783 5.906 .906 4.646 .677 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 25.4-4 1.000 .157 .571 5.906 .846 4.646 .905 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 25.4-5 1.000 .197 .571 5.906 .846 4.646 .905 PL 16 M6-D5 WRENCH ACE 4-5
PICCO ACE 25.4-6 1.000 .236 .783 5.906 .846 4.646 .905 PL 16 M6-D5 WRENCH ACE 6-7
PICCO ACE 25.4-7 1.000 .276 .783 5.906 .846 4.646 .905 PL 16 M6-D5 WRENCH ACE 6-7
• Holders are suitable for right- and left-hand PICCO inserts
For tools, see pages: PICIN-MGSIR/L (386) • PICIN-SCLCR/L (386) • PICIN-SWUBR/L (386)
