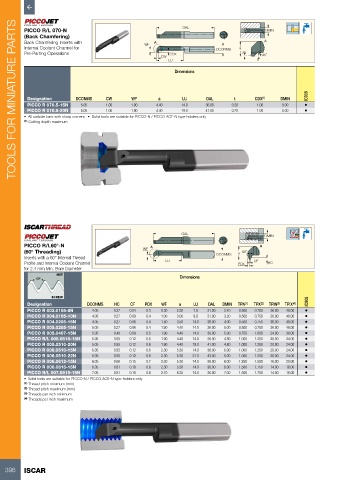

TOOLS FOR MINIATURE PARTS
PICCO R/L 070-N OAL DMIN
(Back Chamfering)
Back Chamfering Inserts with WF A A
Internal Coolant Channel for DCONMS a

Pre-Parting Operations CDX 8˚ 45˚
CW
LU t
Dimensions

IC908
Designation DCONMS CW WF a LU OAL t CDX (1) DMIN
PICCO R 070.5-15N 5.05 1.00 1.90 4.40 14.0 36.00 0.20 1.00 5.00 •
PICCO R 070.5-20N 5.05 1.00 1.90 4.40 19.0 41.00 0.20 1.00 5.00 •
• All carbide bars with sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

OAL DMIN
PICCO R/L 60°-N A A
(60° Threading) WF DCONMS a 60˚
Inserts with a 60° Internal Thread
Profile and Internal Coolant Channel LU PDX CF HC
for 2.4 mm Min. Bore Diameter
NUT
60° Dimensions

SCREW
Designation DCONMS HC CF PDX WF a LU OAL DMIN TPN (1) TPX (2) TPIN (3) TPIX (4) IC908
PICCO R 003.0105-8N 4.05 0.27 0.04 0.3 0.30 2.30 7.0 31.00 2.40 0.500 0.700 36.00 48.00 •
PICCO R 004.0105-10N 4.05 0.27 0.09 0.4 1.00 3.00 9.0 31.00 3.20 0.500 0.750 36.00 48.00 •
PICCO R 004.0205-15N 4.05 0.27 0.06 0.4 1.50 3.50 14.0 36.00 4.00 0.500 0.750 36.00 48.00 •
PICCO R 005.0205-15N 5.05 0.27 0.06 0.4 1.90 4.40 14.0 36.00 5.00 0.500 0.750 36.00 48.00 •
PICCO R 005.0407-15N 5.05 0.40 0.09 0.5 1.90 4.40 14.0 36.00 5.00 0.750 1.000 24.00 36.00 •
PICCO R/L 005.0510-15N 5.05 0.55 0.12 0.6 1.90 4.40 14.0 36.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 005.0510-20N 5.05 0.55 0.12 0.6 1.90 4.40 19.0 41.00 4.80 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-15N 6.05 0.55 0.12 0.6 2.30 5.30 14.0 36.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0510-22N 6.05 0.55 0.12 0.6 2.30 5.30 21.0 43.00 6.00 1.000 1.250 20.00 24.00 •
PICCO R 006.0612-15N 6.05 0.68 0.15 0.7 2.30 5.30 14.0 36.00 6.00 1.250 1.500 16.00 20.00 •
PICCO R 006.0815-15N 6.05 0.81 0.18 0.8 2.30 5.30 14.0 36.00 6.00 1.500 1.750 14.00 16.00 •
PICCO R/L 007.0815-15N 7.05 0.81 0.18 0.8 2.70 6.30 14.0 36.00 7.00 1.500 1.750 14.00 16.00 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Thread pitch minimum (mm)
(2) Thread pitch maximum (mm)
(3) Threads per inch minimum
(4) Threads per inch maximum
