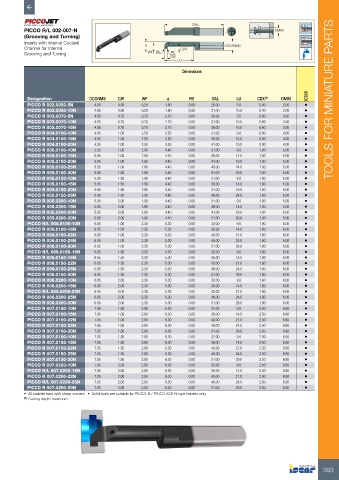

Page 395 - ISCAR(TURNING-CATALOG-42-2022)
P. 395
OAL
PICCO R/L 002-007-N DMIN
(Grooving and Turning)
Inserts with Internal Coolant a DCONMS
Channel for Internal CDX
Grooving and Turning WF RE RE
CW
LU
Dimensions
IC908
Designation DCONMS CW WF a RE OAL LU CDX (1) DMIN TOOLS FOR MINIATURE PARTS
PICCO R 002.0050-5N 4.05 0.50 0.20 1.80 0.00 26.00 5.0 0.40 2.00 •
PICCO R 002.0050-10N 4.05 0.50 0.20 1.80 0.00 31.00 10.0 0.40 2.00 •
PICCO R 003.0070-5N 4.05 0.70 0.70 2.70 0.00 26.00 5.0 0.60 3.00 •
PICCO R 003.0070-10N 4.05 0.70 0.70 2.70 0.00 31.00 10.0 0.60 3.00 •
PICCO R 003.0070-16N 4.05 0.70 0.70 2.70 0.00 36.00 15.0 0.60 3.00 •
PICCO R 004.0100-10N 4.05 1.00 1.50 3.50 0.00 31.00 9.0 0.80 4.00 •
PICCO R 004.0100-16N 4.05 1.00 1.50 3.50 0.00 36.00 15.0 0.80 4.00 •
PICCO R 004.0100-20N 4.05 1.00 1.50 3.50 0.00 41.00 19.0 0.80 4.00 •
PICCO R 005.0100-10N 5.05 1.00 1.90 4.40 0.00 31.00 9.0 1.00 5.00 •
PICCO R 005.0100-15N 5.05 1.00 1.90 4.40 0.00 36.00 14.0 1.00 5.00 •
PICCO R 005.0100-20N 5.05 1.00 1.90 4.40 0.00 41.00 19.0 1.00 5.00 •
PICCO R 005.0100-25N 5.05 1.00 1.90 4.40 0.00 46.00 24.0 1.00 5.00 •
PICCO R 005.0100-30N 5.05 1.00 1.90 4.40 0.00 51.00 29.0 1.00 5.00 •
PICCO R 005.0150-10N 5.05 1.50 1.90 4.40 0.00 31.00 9.0 1.00 5.00 •
PICCO R 005.0150-15N 5.05 1.50 1.90 4.40 0.00 36.00 14.0 1.00 5.00 •
PICCO R 005.0150-20N 5.05 1.50 1.90 4.40 0.00 41.00 19.0 1.00 5.00 •
PICCO R 005.0150-25N 5.05 1.50 1.90 4.40 0.00 46.00 24.0 1.00 5.00 •
PICCO R 005.0200-10N 5.05 2.00 1.90 4.40 0.00 31.00 9.0 1.00 5.00 •
PICCO R 005.0200-15N 5.05 2.00 1.90 4.40 0.00 36.00 14.0 1.00 5.00 •
PICCO R 005.0200-20N 5.05 2.00 1.90 4.40 0.00 41.00 19.0 1.00 5.00 •
PICCO R 005.0200-30N 5.05 2.00 1.90 4.40 0.00 51.00 29.0 1.00 5.00 •
PICCO R/L 006.0100-10N 6.05 1.00 2.30 5.30 0.00 32.00 9.0 1.80 6.00 •
PICCO R 006.0100-15N 6.05 1.00 2.30 5.30 0.00 36.00 14.0 1.80 6.00 •
PICCO R 006.0100-22N 6.05 1.00 2.30 5.30 0.00 43.00 21.0 1.80 6.00 •
PICCO R 006.0100-25N 6.05 1.00 2.30 5.30 0.00 46.00 24.0 1.80 6.00 •
PICCO R 006.0100-30N 6.05 1.00 2.30 5.30 0.00 51.00 29.0 1.80 6.00 •
PICCO R/L 006.0150-10N 6.05 1.50 2.30 5.30 0.00 32.00 9.0 1.80 6.00 •
PICCO R 006.0150-15N 6.05 1.50 2.30 5.30 0.00 36.00 14.0 1.80 6.00 •
PICCO R 006.0150-22N 6.05 1.50 2.30 5.30 0.00 43.00 21.0 1.80 6.00 •
PICCO R 006.0150-25N 6.05 1.50 2.30 5.30 0.00 46.00 24.0 1.80 6.00 •
PICCO R 006.0150-30N 6.05 1.50 2.30 5.30 0.00 51.00 29.0 1.80 6.00 •
PICCO R 006.0200-10N 6.05 2.00 2.30 5.30 0.00 32.00 9.0 1.80 6.00 •
PICCO R 006.0200-15N 6.05 2.00 2.30 5.30 0.00 36.00 14.0 1.80 6.00 •
PICCO R/L 006.0200-22N 6.05 2.00 2.30 5.30 0.00 43.00 21.0 1.80 6.00 •
PICCO R 006.0200-25N 6.05 2.00 2.30 5.30 0.00 46.00 24.0 1.80 6.00 •
PICCO R 006.0200-30N 6.05 2.00 2.30 5.30 0.00 51.00 29.0 1.80 6.00 •
PICCO R 007.0100-10N 7.05 1.00 2.80 6.30 0.00 32.00 9.0 2.50 6.80 •
PICCO R 007.0100-15N 7.05 1.00 2.80 6.30 0.00 36.00 14.0 2.50 6.80 •
PICCO R 007.0100-22N 7.05 1.00 2.80 6.30 0.00 43.00 21.0 2.50 6.80 •
PICCO R 007.0100-25N 7.05 1.00 2.80 6.30 0.00 46.00 24.0 2.50 6.80 •
PICCO R 007.0100-30N 7.05 1.00 2.80 6.30 0.00 51.00 29.0 2.50 6.80 •
PICCO R 007.0150-10N 7.05 1.50 2.80 6.30 0.00 32.00 9.0 2.50 6.80 •
PICCO R 007.0150-15N 7.05 1.50 2.80 6.30 0.00 36.00 14.0 2.50 6.80 •
PICCO R 007.0150-22N 7.05 1.50 2.80 6.30 0.00 43.00 21.0 2.50 6.80 •
PICCO R 007.0150-25N 7.05 1.50 2.80 6.30 0.00 46.00 24.0 2.50 6.80 •
PICCO R 007.0150-30N 7.05 1.50 2.80 6.30 0.00 51.00 29.0 2.50 6.80 •
PICCO R 007.0200-10N 7.05 2.00 2.80 6.30 0.00 32.00 9.0 2.50 6.80 •
PICCO R/L 007.0200-15N 7.05 2.00 2.80 6.30 0.00 36.00 14.0 2.50 6.80 •
PICCO R 007.0200-22N 7.05 2.00 2.80 6.30 0.00 43.00 21.0 2.50 6.80 •
PICCO R/L 007.0200-25N 7.05 2.00 2.80 6.30 0.00 46.00 24.0 2.50 6.80 •
PICCO R 007.0200-30N 7.05 2.00 2.80 6.30 0.00 51.00 29.0 2.50 6.80 •
• All carbide bars with sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
