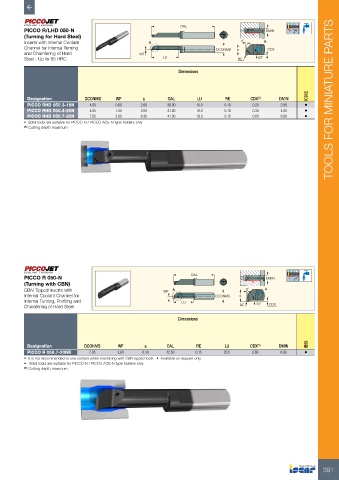

Page 393 - ISCAR(TURNING-CATALOG-42-2022)

OAL
PICCO R/LHD 050-N DMIN
(Turning for Hard Steel)

Inserts with Internal Coolant A 8˚ A
Channel for Internal Turning DCONMS a CDX

and Chamfering of Hard WF
Steel - Up to 65 HRC LU RE 20˚
Dimensions

IC902
Designation DCONMS WF a OAL LU RE CDX (1) DMIN TOOLS FOR MINIATURE PARTS
PICCO RHD 050.3-16N 4.05 0.60 2.60 36.00 15.0 0.10 0.20 2.80 •
PICCO RHD 050.4-20N 4.05 1.50 3.50 41.00 19.0 0.10 0.30 4.00 •
PICCO RHD 050.7-20N 7.05 2.80 6.30 41.00 19.0 0.15 0.60 6.80 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

PICCO R 050-N OAL DMIN
(Turning with CBN)
CBN Tipped Inserts with WF A 8˚ A
Internal Coolant Channel for DCONMS a

Internal Turning, Profiling and LU 20˚
Chamfering of Hard Steel RE CDX
Dimensions

Designation DCONMS WF a OAL RE LU CDX (1) DMIN IB55
PICCO R 050.7-20NB 7.05 2.80 6.30 42.50 0.15 20.5 0.60 6.80 •
• It is not recommended to use coolant when machining with CBN tipped tools • Available on request only
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
