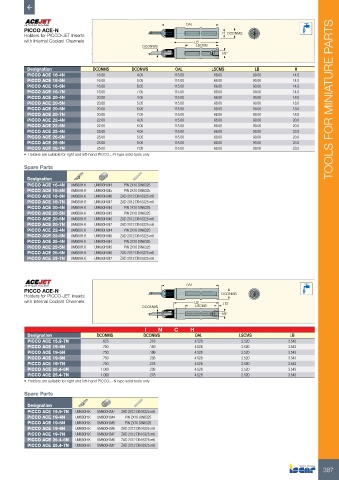

P. 389
OAL
PICCO ACE-N
Holders for PICCO-JET Inserts H DCONMS
with Internal Coolant Channels LB
DCONWS LSCMS
1/8"
Designation DCONMS DCONWS OAL LSCMS LB H
PICCO ACE 16-4N 16.00 4.05 115.00 68.00 90.00 14.0
PICCO ACE 16-5N 16.00 5.05 115.00 68.00 90.00 14.0
PICCO ACE 16-6N 16.00 6.05 115.00 68.00 90.00 14.0
PICCO ACE 16-7N 16.00 7.05 115.00 68.00 90.00 14.0
PICCO ACE 20-4N 20.00 4.05 115.00 68.00 90.00 18.0 TOOLS FOR MINIATURE PARTS
PICCO ACE 20-5N 20.00 5.05 115.00 68.00 90.00 18.0
PICCO ACE 20-6N 20.00 6.05 115.00 68.00 90.00 18.0
PICCO ACE 20-7N 20.00 7.05 115.00 68.00 90.00 18.0
PICCO ACE 22-4N 22.00 4.05 115.00 68.00 90.00 20.0
PICCO ACE 22-6N 22.00 6.05 115.00 68.00 90.00 20.0
PICCO ACE 25-4N 25.00 4.05 115.00 68.00 90.00 23.0
PICCO ACE 25-5N 25.00 5.05 115.00 68.00 90.00 23.0
PICCO ACE 25-6N 25.00 6.05 115.00 68.00 90.00 23.0
PICCO ACE 25-7N 25.00 7.05 115.00 68.00 90.00 23.0
• Holders are suitable for right and left-hand PICCO...-N type solid tools only
Spare Parts
Designation
PICCO ACE 16-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 16-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 16-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 16-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 20-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 20-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 20-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 20-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 22-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 22-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 25-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 25-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 25-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 25-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
OAL
PICCO ACE-N
Holders for PICCO-JET Inserts DCONMS
with Internal Coolant Channels LB
.157
DCONWS LSCMS
1/8"
I N C H
Designation DCONMS DCONWS OAL LSCMS LB
PICCO ACE 15.9-7N .625 .278 4.528 2.520 3.543
PICCO ACE 19-4N .750 .159 4.528 2.520 3.543
PICCO ACE 19-5N .750 .199 4.528 2.520 3.543
PICCO ACE 19-6N .750 .238 4.528 2.520 3.543
PICCO ACE 19-7N .750 .278 4.528 2.520 3.543
PICCO ACE 25.4-6N 1.000 .238 4.528 2.520 3.543
PICCO ACE 25.4-7N 1.000 .278 4.528 2.520 3.543
• Holders are suitable for right and left-hand PICCO...-N type solid tools only
Spare Parts
Designation
PICCO ACE 15.9-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 19-4N UM600H.K UM600H.M4 PIN 2X10 DIN6325
PICCO ACE 19-5N UM600H.K UM600H.M5 PIN 2X10 DIN6325
PICCO ACE 19-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 19-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
PICCO ACE 25.4-6N UM600H.K UM600H.M6 ZAD 2X12 DIN 6325 m6
PICCO ACE 25.4-7N UM600H.K UM600H.M7 ZAD 2X12 DIN 6325 m6
387
