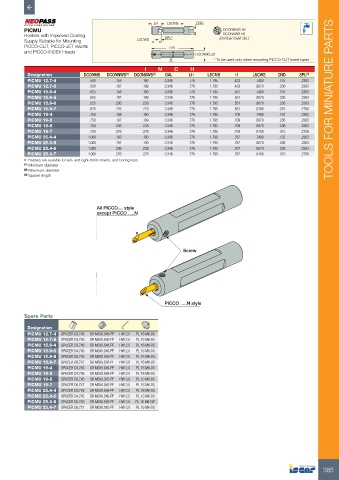

Page 387 - ISCAR(TURNING-CATALOG-42-2022)

LH LSCMS CND
PICMU DCONNWS h6
DCONXWS h6
Holders with Improved Cooling SPL* (mini bar insert dia.)
Supply Suitable for Mounting LSCWS
PICCO-CUT, PICCO-JET Inserts OAL
and PICCO-INDEX Heads DCONMS g7
H * To be used only when mounting PICCO-CUT insert types
I N C H
Designation DCONMS DCONNWS (1) DCONXWS (2) OAL LH LSCMS H LSCWS CND SPL (3)
PICMU 12.7-4 .500 .158 .160 3.346 .776 1.795 .433 .7480 .197 .2363
PICMU 12.7-5 .500 .197 .199 3.346 .776 1.795 .433 .8070 .236 .2363
PICMU 15.9-4 .625 .158 .160 3.346 .776 1.795 .551 .7480 .197 .2363
PICMU 15.9-5 .625 .197 .199 3.346 .776 1.795 .551 .8070 .236 .2363 TOOLS FOR MINIATURE PARTS
PICMU 15.9-6 .625 .236 .238 3.346 .776 1.795 .551 .8070 .236 .2363
PICMU 15.9-7 .625 .276 .278 3.346 .776 1.795 .551 .8190 .315 .2756
PICMU 19-4 .750 .158 .160 3.346 .776 1.795 .709 .7480 .197 .2363
PICMU 19-5 .750 .197 .199 3.346 .776 1.795 .709 .8070 .236 .2363
PICMU 19-6 .750 .236 .238 3.346 .776 1.795 .709 .8070 .236 .2363
PICMU 19-7 .750 .276 .278 3.346 .776 1.795 .709 .8190 .315 .2756
PICMU 25.4-4 1.000 .158 .160 3.346 .776 1.795 .787 .7480 .197 .2363
PICMU 25.4-5 1.000 .197 .199 3.346 .776 1.795 .787 .8070 .236 .2363
PICMU 25.4-6 1.000 .236 .238 3.346 .776 1.795 .787 .8070 .236 .2363
PICMU 25.4-7 1.000 .276 .278 3.346 .776 1.795 .787 .8190 .315 .2756
• Holders are suitable for left- and right-hand inserts, and boring bars
(1) Minimum diameter
(2) Maximum diameter
(3) Spacer length

All PICCO.... style
except PICCO .....N

Screw

PICCO .....N style

Spare Parts
Designation
PICMU 12.7-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 12.7-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 15.9-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 15.9-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 15.9-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5
PICMU 15.9-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5
PICMU 19-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 19-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 19-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5
PICMU 19-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5
PICMU 25.4-4 SPACER D3.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 25.4-5 SPACER D4.7X6 SR M5X0.5X6-PF HW 2.5 PL 16 M6-D5
PICMU 25.4-6 SPACER D5.7X6 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5*
PICMU 25.4-7 SPACER D6.7X7 SR M6X0.5X6 PF HW 3.0 PL 16 M6-D5

385
