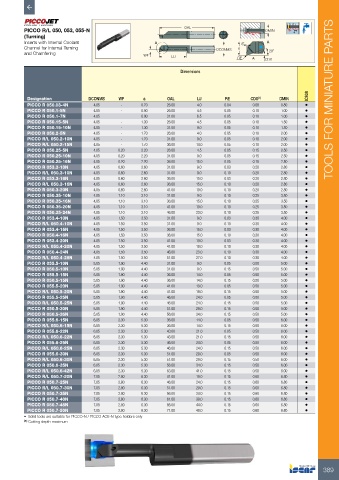

Page 391 - ISCAR(TURNING-CATALOG-42-2022)

PICCO R/L 050, 053, 055-N OAL DMIN
(Turning)
Inserts with Internal Coolant A A
8˚
Channel for Internal Turning DCONMS a 20˚
and Chamfering WF LU RE A CDX

Dimensions

IC908
Designation DCONMS WF a OAL LU RE CDX (1) DMIN TOOLS FOR MINIATURE PARTS
PICCO R 050.08-4N 4.05 - 0.70 26.00 4.0 0.04 0.08 0.80 •
PICCO R 050.1-5N 4.05 - 0.90 26.00 4.5 0.05 0.10 1.00 •
PICCO R 050.1-7N 4.05 - 0.90 31.00 6.5 0.05 0.10 1.00 •
PICCO R 050.15-5N 4.05 - 1.30 26.00 4.5 0.05 0.10 1.50 •
PICCO R 050.15-10N 4.05 - 1.30 31.00 9.0 0.05 0.10 1.50 •
PICCO R 050.2-5N 4.05 - 1.70 26.00 4.0 0.05 0.10 2.00 •
PICCO R/L 050.2-10N 4.05 - 1.70 31.00 9.0 0.05 0.10 2.00 •
PICCO R/L 050.2-15N 4.05 - 1.70 36.00 14.0 0.05 0.10 2.00 •
PICCO R 050.25-5N 4.05 0.20 2.20 26.00 4.5 0.05 0.15 2.50 •
PICCO R 050.25-10N 4.05 0.20 2.20 31.00 9.0 0.05 0.15 2.50 •
PICCO R 050.25-16N 4.05 0.20 2.20 36.00 15.0 0.05 0.15 2.50 •
PICCO R 053.3-10N 4.05 0.60 2.60 31.00 9.0 0.03 0.20 2.80 •
PICCO R/L 050.3-10N 4.05 0.60 2.60 31.00 9.0 0.10 0.20 2.80 •
PICCO R 053.3-16N 4.05 0.60 2.60 36.00 15.0 0.03 0.20 2.80 •
PICCO R/L 050.3-16N 4.05 0.60 2.60 36.00 15.0 0.10 0.20 2.80 •
PICCO R 050.3-20N 4.05 0.60 2.60 41.00 19.0 0.10 0.20 2.80 •
PICCO R 050.35-10N 4.05 1.10 3.10 31.00 9.0 0.10 0.25 3.50 •
PICCO R 050.35-16N 4.05 1.10 3.10 36.00 15.0 0.10 0.25 3.50 •
PICCO R 050.35-20N 4.05 1.10 3.10 41.00 19.0 0.10 0.25 3.50 •
PICCO R 050.35-24N 4.05 1.10 3.10 46.00 23.0 0.10 0.25 3.50 •
PICCO R 053.4-10N 4.05 1.50 3.50 31.00 9.0 0.03 0.30 4.00 •
PICCO R/L 050.4-10N 4.05 1.50 3.50 31.00 9.0 0.10 0.30 4.00 •
PICCO R 053.4-16N 4.05 1.50 3.50 36.00 15.0 0.03 0.30 4.00 •
PICCO R 050.4-16N 4.05 1.50 3.50 36.00 15.0 0.10 0.30 4.00 •
PICCO R 053.4-20N 4.05 1.50 3.50 41.00 19.0 0.03 0.30 4.00 •
PICCO R/L 050.4-20N 4.05 1.50 3.50 41.00 19.0 0.10 0.30 4.00 •
PICCO R 050.4-24N 4.05 1.50 3.50 46.00 23.0 0.10 0.30 4.00 •
PICCO R/L 050.4-28N 4.05 1.50 3.50 51.00 27.0 0.10 0.30 4.00 •
PICCO R 055.5-10N 5.05 1.90 4.40 31.00 9.0 0.05 0.50 5.00 •
PICCO R 050.5-10N 5.05 1.90 4.40 31.00 9.0 0.15 0.50 5.00 •
PICCO R 055.5-15N 5.05 1.90 4.40 36.00 14.0 0.05 0.50 5.00 •
PICCO R 050.5-15N 5.05 1.90 4.40 36.00 14.0 0.15 0.50 5.00 •
PICCO R 055.5-20N 5.05 1.90 4.40 41.00 19.0 0.05 0.50 5.00 •
PICCO R/L 050.5-20N 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 •
PICCO R 055.5-25N 5.05 1.90 4.40 46.00 24.0 0.05 0.50 5.00 •
PICCO R/L 050.5-25N 5.05 1.90 4.40 46.00 24.0 0.15 0.50 5.00 •
PICCO R 050.5-30N 5.05 1.90 4.40 51.00 29.0 0.15 0.50 5.00 •
PICCO R 050.5-35N 5.05 1.90 4.40 56.00 34.0 0.15 0.50 5.00 •
PICCO R 055.6-15N 6.05 2.30 5.30 36.00 14.0 0.05 0.50 6.00 •
PICCO R/L 050.6-15N 6.05 2.30 5.30 36.00 14.0 0.15 0.50 6.00 •
PICCO R 055.6-22N 6.05 2.30 5.30 43.00 21.0 0.05 0.50 6.00 •
PICCO R/L 050.6-22N 6.05 2.30 5.30 43.00 21.0 0.15 0.50 6.00 •
PICCO R 055.6-25N 6.05 2.30 5.30 46.00 24.0 0.05 0.50 6.00 •
PICCO R/L 050.6-25N 6.05 2.30 5.30 46.00 24.0 0.15 0.50 6.00 •
PICCO R 055.6-30N 6.05 2.30 5.30 51.00 29.0 0.05 0.50 6.00 •
PICCO R/L 050.6-30N 6.05 2.30 5.30 51.00 29.0 0.15 0.50 6.00 •
PICCO R 050.6-35N 6.05 2.30 5.30 56.00 34.0 0.15 0.50 6.00 •
PICCO R/L 050.6-42N 6.05 2.30 5.30 63.00 41.0 0.15 0.50 6.00 •
PICCO R/L 050.7-20N 7.05 2.80 6.30 41.00 19.0 0.15 0.60 6.80 •
PICCO R 050.7-25N 7.05 2.80 6.30 46.00 24.0 0.15 0.60 6.80 •
PICCO R/L 050.7-30N 7.05 2.80 6.30 51.00 29.0 0.15 0.60 6.80 •
PICCO R 050.7-35N 7.05 2.80 6.30 56.00 34.0 0.15 0.60 6.80 •
PICCO R 050.7-40N 7.05 2.80 6.30 61.00 39.0 0.15 0.60 6.80 •
PICCO R 050.7-45N 7.05 2.80 6.30 66.00 44.0 0.15 0.60 6.80 •
PICCO R 050.7-50N 7.05 2.80 6.30 71.00 49.0 0.15 0.60 6.80 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
