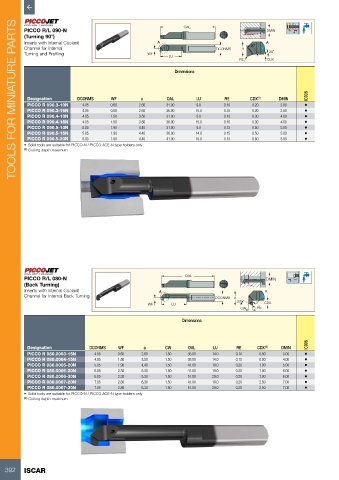

Page 394 - ISCAR(TURNING-CATALOG-42-2022)

TOOLS FOR MINIATURE PARTS
PICCO R/L 090-N OAL DMIN
(Turning 90°)

Inserts with Internal Coolant A 90˚ A
Channel for Internal DCONMS a
Turning and Profiling WF 20˚
LU
RE CDX

Dimensions

IC908
Designation DCONMS WF a OAL LU RE CDX (1) DMIN
PICCO R 090.3-10N 4.05 0.60 2.60 31.00 9.0 0.10 0.20 2.80 •
PICCO R 090.3-16N 4.05 0.60 2.60 36.00 15.0 0.10 0.20 2.80 •
PICCO R 090.4-10N 4.05 1.50 3.50 31.00 9.0 0.10 0.30 4.00 •
PICCO R 090.4-16N 4.05 1.50 3.50 36.00 15.0 0.10 0.30 4.00 •
PICCO R 090.5-10N 5.05 1.90 4.40 31.00 9.0 0.15 0.50 5.00 •
PICCO R 090.5-15N 5.05 1.90 4.40 36.00 14.0 0.15 0.50 5.00 •
PICCO R 090.5-20N 5.05 1.90 4.40 41.00 19.0 0.15 0.50 5.00 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

PICCO R/L 080-N OAL DMIN
(Back Turning)
Inserts with Internal Coolant A A
Channel for Internal Back Turning DCONMS a
30˚ 3˚ CDX
WF LU
CW RE
Dimensions

IC908
Designation DCONMS WF a CW OAL LU RE CDX (1) DMIN
PICCO R 080.0003-15N 4.05 0.60 2.60 1.50 36.00 14.0 0.10 0.50 3.00 •
PICCO R 080.0004-15N 4.05 1.50 3.50 1.50 36.00 14.0 0.15 0.80 4.00 •
PICCO R 080.0005-20N 5.05 1.90 4.40 1.50 41.00 19.0 0.20 1.00 5.00 •
PICCO R 080.0006-20N 6.05 2.30 5.30 1.50 41.00 19.0 0.20 1.80 6.00 •
PICCO R 080.0006-30N 6.05 2.30 5.30 1.50 51.00 29.0 0.20 1.80 6.00 •
PICCO R 080.0007-20N 7.05 2.80 6.30 1.50 41.00 19.0 0.20 2.50 7.00 •
PICCO R 080.0007-30N 7.05 2.80 6.30 1.50 51.00 29.0 0.20 2.50 7.00 •
• Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum
