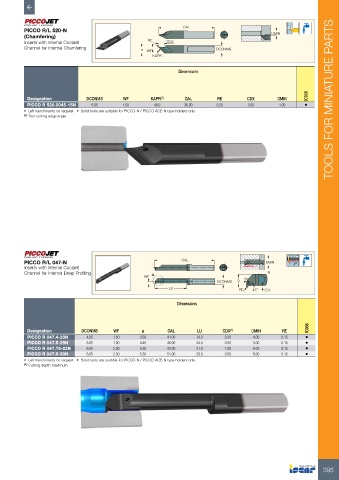

Page 397 - ISCAR(TURNING-CATALOG-42-2022)

OAL
PICCO R/L 520-N
(Chamfering) DMIN
RE
Inserts with Internal Coolant CDX
Channel for Internal Chamfering a WF DCONMS

KAPR

Dimensions

IC908
Designation DCONMS WF KAPR (1) OAL RE CDX DMIN TOOLS FOR MINIATURE PARTS
PICCO R 520.0045-15N 5.05 1.50 45.0 36.00 0.20 3.50 1.00 •
• Left hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Tool cutting edge angle

PICCO R/L 047-N OAL DMIN
Inserts with Internal Coolant
Channel for Internal Deep Profiling A A
WF 8°
DCONMS a
LU RE 47° CDX

Dimensions

IC908
Designation DCONMS WF a OAL LU CDX (1) DMIN RE
PICCO R 047.4-20N 4.05 1.50 3.50 41.00 19.0 0.30 4.00 0.15 •
PICCO R 047.5-25N 5.05 1.90 4.40 46.00 24.0 0.50 5.00 0.15 •
PICCO R 047.T6-22N 6.05 2.30 5.30 43.00 21.0 1.80 6.00 0.15 •
PICCO R 047.6-30N 6.05 2.30 5.30 51.00 29.0 0.50 6.00 0.15 •
• Left hand inserts on request • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
(1) Cutting depth maximum

395
