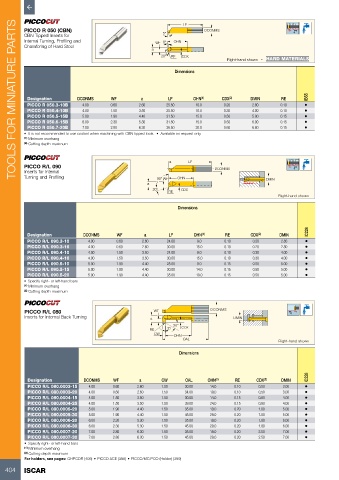

Page 406 - ISCAR(TURNING-CATALOG-42-2022)

LF
TOOLS FOR MINIATURE PARTS
PICCO R 050 (CBN) DCONMS
CBN Tipped Inserts for 5°
Internal Turning, Profiling and WF 8° OHN
Chamfering of Hard Steel
a
20° RE CDX
Right-hand shown • HARD MATERIALS
Dimensions

Designation DCONMS WF a LF OHN (1) CDX (2) DMIN RE IB55
PICCO R 050.3-10B 4.00 0.60 2.60 25.50 10.0 0.20 2.80 0.10 •
PICCO R 050.4-10B 4.00 1.50 3.50 25.50 10.0 0.30 4.00 0.10 •
PICCO R 050.5-15B 5.00 1.90 4.40 31.50 15.0 0.50 5.00 0.15 •
PICCO R 050.6-15B 6.00 2.30 5.30 31.50 15.0 0.50 6.00 0.15 •
PICCO R 050.7-20B 7.00 2.80 6.30 36.50 20.0 0.60 6.80 0.15 •
• It is not recommended to use coolant when machining with CBN tipped tools • Available on request only
(1) Minimum overhang
(2) Cutting depth maximum

PICCO R/L 090 LF DCONMS
Inserts for Internal
Turning and Profiling 90° WF OHN DMIN
a
20° CDX
RE
Right-hand shown
Dimensions

IC228
Designation DCONMS WF a LF OHN (1) RE CDX (2) DMIN
PICCO R/L 090.3-10 4.00 0.60 2.60 24.00 9.0 0.10 0.20 2.80 •
PICCO R/L 090.3-16 4.00 0.60 2.60 30.00 15.0 0.10 0.20 2.80 •
PICCO R/L 090.4-10 4.00 1.50 3.50 24.00 9.0 0.10 0.30 4.00 •
PICCO R/L 090.4-16 4.00 1.50 3.50 30.00 15.0 0.10 0.30 4.00 •
PICCO R/L 090.5-10 5.00 1.90 4.40 25.00 9.0 0.15 0.50 5.00 •
PICCO R/L 090.5-15 5.00 1.90 4.40 30.00 14.0 0.15 0.50 5.00 •
PICCO R/L 090.5-20 5.00 1.90 4.40 35.00 19.0 0.15 0.50 5.00 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum

PICCO R/L 080 WF DCONMS
Inserts for Internal Back Turning a DMIN
30° CDX
RE 3°
CW
OHN
OAL Right-hand shown
Dimensions

IC228
Designation DCONMS WF a CW OAL OHN (1) RE CDX (2) DMIN
PICCO R/L 080.0003-15 4.00 0.60 2.60 1.50 30.00 14.0 0.10 0.50 3.00 •
PICCO R/L 080.0003-20 4.00 0.60 2.60 1.50 34.00 19.0 0.10 0.50 3.00 •
PICCO R/L 080.0004-15 4.00 1.50 3.50 1.50 30.00 14.0 0.15 0.80 4.00 •
PICCO R/L 080.0004-25 4.00 1.50 3.50 1.50 39.00 24.0 0.15 0.80 4.00 •
PICCO R/L 080.0005-20 5.00 1.90 4.40 1.50 35.00 19.0 0.20 1.00 5.00 •
PICCO R/L 080.0005-30 5.00 1.90 4.40 1.50 45.00 29.0 0.20 1.00 5.00 •
PICCO R/L 080.0006-20 6.00 2.30 5.30 1.50 35.00 19.0 0.20 1.80 6.00 •
PICCO R/L 080.0006-30 6.00 2.30 5.30 1.50 45.00 29.0 0.20 1.80 6.00 •
PICCO R/L 080.0007-20 7.00 2.80 6.30 1.50 35.00 19.0 0.20 2.50 7.00 •
PICCO R/L 080.0007-30 7.00 2.80 6.30 1.50 45.00 29.0 0.20 2.50 7.00 •
• Specify right- or left-hand bars
(1) Minimum overhang
(2) Cutting depth maximum
For holders, see pages: GHPCOR (409) • PICCO ACE (398) • PICCO/MG PCO (Holder) (399)
404 ISCAR
