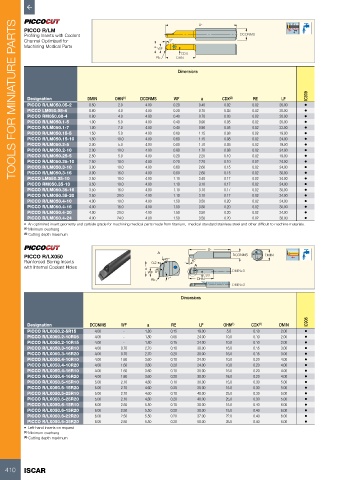

P. 412
LF
TOOLS FOR MINIATURE PARTS
PICCO R/LM
Profiling Inserts with Coolant DCONMS
Channel Optimized for 8°
Machining Medical Parts a
WF
CDX
RE OHN
Dimensions
IC909
Designation DMIN OHN (1) DCONMS WF a CDX (2) RE LF
PICCO R/LM050.05-2 0.50 2.0 4.00 0.20 0.40 0.02 0.02 20.00 •
PICCO LM050.08-4 0.80 4.0 4.00 0.20 0.70 0.03 0.02 20.00 •
PICCO RM050.08-4 0.80 4.0 4.00 0.40 0.70 0.03 0.02 20.00 •
PICCO R/LM050.1-5 1.00 5.0 4.00 0.40 0.90 0.05 0.02 20.00 •
PICCO R/LM050.1-7 1.00 7.0 4.00 0.40 0.90 0.05 0.02 22.00 •
PICCO R/LM050.15-5 1.50 5.0 4.00 0.60 1.15 0.08 0.02 19.00 •
PICCO R/LM050.15-10 1.50 10.0 4.00 0.60 1.15 0.08 0.02 24.00 •
PICCO R/LM050.2-5 2.00 5.0 4.00 0.80 1.70 0.08 0.02 19.00 •
PICCO R/LM050.2-10 2.00 10.0 4.00 0.80 1.70 0.08 0.02 24.00 •
PICCO R/LM050.25-5 2.50 5.0 4.00 0.20 2.20 0.10 0.02 19.00 •
PICCO R/LM050.25-10 2.50 10.0 4.00 0.20 2.20 0.10 0.02 24.00 •
PICCO R/LM050.3-10 3.00 10.0 4.00 0.60 2.60 0.15 0.02 24.00 •
PICCO R/LM050.3-16 3.00 16.0 4.00 0.60 2.60 0.15 0.02 30.00 •
PICCO LM050.35-10 3.50 10.0 4.00 1.10 3.40 0.17 0.02 24.00 •
PICCO RM050.35-10 3.50 10.0 4.00 1.10 3.10 0.17 0.02 24.00 •
PICCO R/LM050.35-16 3.50 16.0 4.00 1.10 3.10 0.17 0.02 30.00 •
PICCO R/LM050.35-20 3.50 20.0 4.00 1.10 3.10 0.17 0.02 34.00 •
PICCO R/LM050.4-10 4.00 10.0 4.00 1.50 3.50 0.20 0.02 24.00 •
PICCO R/LM050.4-16 4.00 16.0 4.00 1.50 3.50 0.20 0.02 30.00 •
PICCO R/LM050.4-20 4.00 20.0 4.00 1.50 3.50 0.20 0.02 34.00 •
PICCO R/LM050.4-24 4.00 24.0 4.00 1.50 3.50 0.20 0.02 38.00 •
• An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials.
(1) Minimum overhang
(2) Cutting depth maximum
LF
PICCO R/LX050 A DCONMS DMIN
Reinforced Boring Inserts 0.2 45° 6°
with Internal Coolant Holes a A
WF 6° CDX DMIN≥3
RE 7° OHN
DMIN<3
Dimensions
IC908
Designation DCONMS WF a RE LF OHN (1) CDX (2) DMIN
PICCO R/LX050.2-5R15 4.00 - 1.80 0.15 19.00 5.0 0.10 2.00 •
PICCO R/LX050.2-10R05 4.00 - 1.80 0.05 24.00 10.0 0.10 2.00 •
PICCO R/LX050.2-10R15 4.00 - 1.80 0.15 24.00 10.0 0.10 2.00 •
PICCO R/LX050.3-16R10 4.00 0.70 2.70 0.10 30.00 16.0 0.15 3.00 •
PICCO R/LX050.3-16R20 4.00 0.70 2.70 0.20 30.00 16.0 0.15 3.00 •
PICCO R/LX050.4-10R10 4.00 1.60 3.60 0.10 24.00 10.0 0.20 4.00 •
PICCO R/LX050.4-10R20 4.00 1.60 3.60 0.20 24.00 10.0 0.20 4.00 •
PICCO R/LX050.4-16R10 4.00 1.60 3.60 0.10 30.00 16.0 0.20 4.00 •
PICCO R/LX050.4-16R20 4.00 1.60 3.60 0.20 30.00 16.0 0.20 4.00 •
PICCO R/LX050.5-15R10 5.00 2.10 4.60 0.10 30.00 15.0 0.30 5.00 •
PICCO R/LX050.5-15R20 5.00 2.10 4.60 0.20 30.00 15.0 0.30 5.00 •
PICCO R/LX050.5-25R10 5.00 2.10 4.60 0.10 40.00 25.0 0.30 5.00 •
PICCO R/LX050.5-25R20 5.00 2.10 4.60 0.20 40.00 25.0 0.30 5.00 •
PICCO R/LX050.6-15R10 6.00 2.50 5.50 0.10 30.00 15.0 0.40 6.00 •
PICCO R/LX050.6-15R20 6.00 2.50 5.50 0.20 30.00 15.0 0.40 6.00 •
PICCO R/LX050.6-22R20 6.00 2.50 5.50 0.20 37.00 22.0 0.40 6.00 •
PICCO R/LX050.6-35R20 6.00 2.50 5.50 0.20 50.00 35.0 0.40 6.00 •
• Left-hand inserts on request
(1) Minimum overhang
(2) Cutting depth maximum
