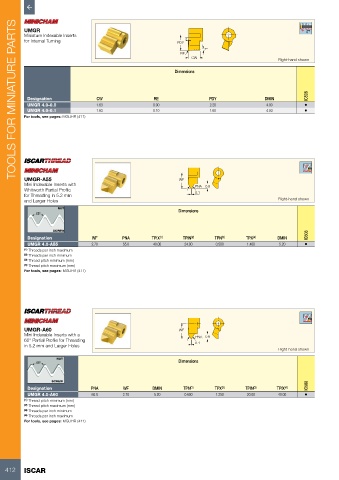

P. 414

TOOLS FOR MINIATURE PARTS
         UMGR
         Miniature Indexable Inserts                              3°
         for Internal Turning                                  PDY
                                                                         7°
                                                                RE
                                                                    CW
                                                                                                   Right-hand shown
                                                              Dimensions



                                                                                                             IC508
           Designation             CW                  RE                 PDY                 DMIN
           UMGR 4.0-0.0            1.63                0.00                2.20                4.00         •
           UMGR 4.0-0.1            1.63                0.10                1.60                4.00         •
         For tools, see pages: MGUHR (411)









          UMGR-A55                                              WF
          Mini Indexable Inserts with                                PNA   0.8
          Whitworth Partial Profile                                   0.1
          for Threading in 5.2 mm
          and Larger Holes                                                                         Right-hand shown
                     NUT
              55°                                               Dimensions


                    SCREW
           Designation           WF         PNA       TPIX (1)   TPIN (2)   TPN (3)    TPX (4)    DMIN       IC508
           UMGR 4.0-A55          2.70       55.0       40.00      24.00      0.500      1.400      5.20     •
          (1)  Threads per inch maximum
          (2)  Threads per inch minimum
          (3)  Thread pitch minimum (mm)
          (4)  Thread pitch maximum (mm)
          For tools, see pages: MGUHR (411)








          UMGR-A60                                              WF
          Mini Indexable Inserts with a                               PNA   0.8
          60° Partial Profile for Threading                           0.1
          in 5.2 mm and Larger Holes
                                                                                                   Right-hand shown
                     NUT
              60°                                               Dimensions


                   SCREW
           Designation           PNA        WF         DMIN      TPN (1)    TPX (2)    TPIN (3)   TPIX (4)   IC508
           UMGR 4.0-A60          60.0       2.70       5.20       0.600      1.250      20.00      40.00    •
          (1)  Thread pitch minimum (mm)
          (2)  Thread pitch maximum (mm)
          (3)  Threads per inch minimum
          (4)  Threads per inch maximum
          For tools, see pages: MGUHR (411)
