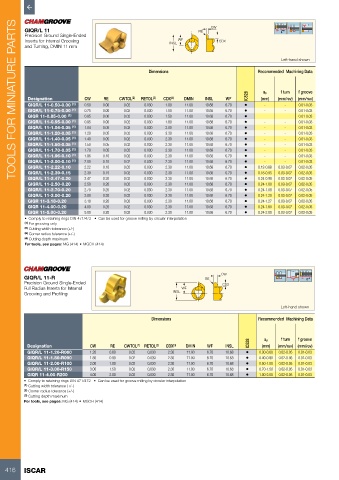

TOOLS FOR MINIATURE PARTS
          GIQR/L 11                                                    RE  CW
          Precision Ground Single-Ended
          Inserts for Internal Grooving                      INSL  WF         CDX
          and Turning, DMIN 11 mm

                                                                                                    Left-hand shown
                                                     Dimensions                             Recommended  Machining Data



                                                                                        IC528  ap   f turn  f groove
           Designation         CW    RE    CWTOL (2)  RETOL (3)  CDX (4)  DMIN  INSL  WF     (mm)  (mm/rev)  (mm/rev)
           GIQR/L 11-0.50-0.00  (1)  0.50  0.00  0.02  0.030  1.00  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-0.75-0.00  (1)  0.75  0.00  0.02  0.030  1.50  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR 11-0.85-0.00  (1)  0.85  0.00  0.02  0.030  1.50  11.00  10.68  6.70   •      -      -    0.01-0.03
           GIQR/L 11-0.95-0.00  (1)  0.95  0.00  0.02  0.030  1.80  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.04-0.05  (1)  1.04  0.05  0.02  0.030  2.00  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.20-0.05  (1)  1.20  0.05  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.40-0.05  (1)  1.40  0.05  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.50-0.05  (1)  1.50  0.05  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.70-0.05  (1)  1.70  0.05  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-1.96-0.10  (1)  1.96  0.10  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-2.00-0.10  (1)  2.00  0.10  0.02  0.030  2.30  11.00  10.68  6.70  •     -      -    0.01-0.03
           GIQR/L 11-2.22-0.10  2.22  0.10   0.02   0.030  2.30   11.00  10.68  6.70   •    0.12-0.88  0.03-0.07  0.02-0.05
           GIQR/L 11-2.39-0.15  2.39  0.15   0.02   0.030  2.30   11.00  10.68  6.70   •    0.18-0.95  0.03-0.07  0.02-0.05
           GIQR/L 11-2.47-0.20  2.47  0.20   0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-0.98  0.03-0.07  0.02-0.05
           GIQR/L 11-2.50-0.20  2.50  0.20   0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-1.00  0.03-0.07  0.02-0.05
           GIQR/L 11-2.70-0.20  2.70  0.20   0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-1.08  0.03-0.07  0.02-0.05
           GIQR/L 11-3.00-0.20  3.00  0.20   0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-1.20  0.03-0.07  0.02-0.05
           GIQR 11-3.18-0.20   3.18  0.20    0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-1.27  0.03-0.07  0.02-0.05
           GIQR 11-4.00-0.20   4.00  0.20    0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-1.60  0.03-0.07  0.02-0.05
           GIQR 11-5.00-0.20   5.00  0.20    0.02   0.030  2.30   11.00  10.68  6.70   •    0.24-2.00  0.03-0.07  0.02-0.05
          •  Comply to retaining rings DIN 471/472   •  Can be used for groove milling by circular interpolation
          (1)  For grooving only
          (2)  Cutting width tolerance (+/-)
          (3)  Corner radius tolerance (+/-)
          (4)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)



         GIQR/L 11-R                                                     RE    CW
         Precision Ground Single-Ended                                         CDX
         Full Radius Inserts for Internal                        WF
         Grooving and Profiling                               INSL

                                                                                                    Left-hand shown
                                                      Dimensions                            Recommended  Machining Data



                                                                                                    f turn
                                                                                                          f groove
                                                                                              ap
           Designation           CW     RE   CWTOL (1)  RETOL (2)  CDX (3)  DMIN  WF  INSL  IC528  (mm)  (mm/rev)  (mm/rev)
           GIQR/L 11-1.20-R060   1.20  0.60   0.02   0.030  2.30   11.00  6.70  10.68  •    0.30-0.60  0.02-0.05  0.01-0.03
           GIQR/L 11-1.80-R090   1.80  0.90   0.02   0.030  2.30   11.00  6.70  10.68  •    0.40-0.90  0.02-0.05  0.01-0.03
           GIQR/L 11-2.00-R100   2.00  1.00   0.02   0.030  2.30   11.00  6.70  10.68  •    0.50-1.00  0.02-0.05  0.01-0.03
           GIQR/L 11-3.00-R150   3.00  1.50   0.02   0.030  2.30   11.00  6.70  10.68  •    0.70-1.50  0.02-0.05  0.01-0.03
           GIQR 11-4.00-R200     4.00  2.00   0.02   0.030  2.30   11.00  6.70  10.68  •    1.00-2.00  0.02-0.05  0.01-0.03
         •  Comply to retaining rings DIN 471/472   •  Can be used for groove milling by circular interpolation
         (1)  Cutting width tolerance (+/-)
         (2)  Corner radius tolerance (+/-)
         (3)  Cutting depth maximum
         For tools, see pages: MG (414) • MGCH (414)
