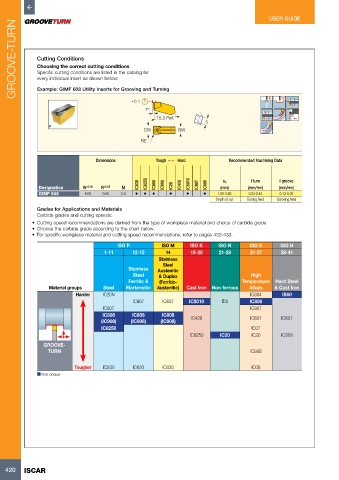

Page 422 - ISCAR(TURNING-CATALOG-42-2022)
P. 422

USER GUIDE
      GROOVE-TURN  Cutting Conditions








              Choosing the correct cutting conditions
              Specific cutting conditions are listed in the catalog for
              every individual insert as shown below:

              Example: GIMF 608 Utility Inserts for Grooving and Turning

                                               ±0.1
                                                    7º
                                                        15.3 Ref.
                                                                         5
                                                    CW          BW
                                                  RE


                                   Dimensions           Tough 1   Hard           Recommended Machining Data



                                                                                                   f groove
                                                                                         f turn
                                                                               ap
               Designation    W ±0.05  R ±0.05  M  IC830  IC8250  IC808  IC908  IC20  IC428  IC5010  IC907  IC806  (mm)  (mm/rev)  (mm/rev)
               GIMF 608        6.00  0.80   5.0  • • •      •     •     •     1.00-3.60  0.24-0.42  0.13-0.25
                                                                             Depth of cut  Turning feed  Grooving feed
              Grades for Applications and Materials
              Carbide grades and cutting speeds:
            •  Cutting speed recommendations are derived from the type of workpiece material and choice of carbide grade
            •  Choose the carbide grade according to the chart below.
            •  For specific workpiece material and cutting speed recommendations, refer to pages 432-433.
                                          ISO P           ISO M     ISO K     ISO N      ISO S      ISO H
                                      1-11      12-13      14       15-20     21-28      31-37      38-41
                                                         Stainless
      TEXT                                    Stainless   Austenitic                     High
                                                          Steel
                                                Steel
                                                         & Duplex
                                              Ferritic &
                                                         (Ferritic-
                                                                                                 & Cast Iron
                                                                                         Alloys
                  Material groups    Steel   Martensitic  Austenitic)  Cast Iron Non-ferrous  Temperature  Hard Steel
                            Harder   IC20N                                               IC804      IB50
                                                IC807     IC807    IC5010      ID5       IC806
                                     IC807                                               IC907
                                     IC808     IC808      IC808
                                     (IC908)   (IC908)   (IC908)    IC428                IC807      IC807
                                     IC8250                                              IC07
                                                                    IC8250    IC20       IC20       IC808

                GROOVE-
                  TURN                                                                   IC908


                           Tougher   IC830      IC830     IC830                          IC08
                First choice
