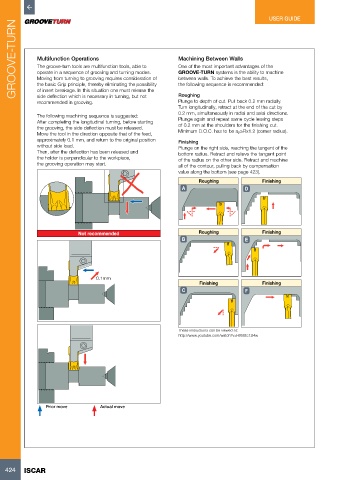

USER GUIDE
      GROOVE-TURN  Multifunction Operations                     Machining Between Walls








                                                                One of the most important advantages of the
              The groove-turn tools are multifunction tools, able to
                                                                GROOVE-TURN systems is the ability to machine
              operate in a sequence of grooving and turning modes.
                                                                between walls. To achieve the best results,
              Moving from turning to grooving requires consideration of
              the basic Grip principle, thereby eliminating the possibility
              of insert breakage. In this situation one must release the
                                                                Roughing
              side deflection which is necessary in turning, but not
                                                                Plunge to depth of cut. Pull back 0.2 mm radially.
              recommended in grooving.                          the following sequence is recommended:
                                                                Turn longitudinally, retract at the end of the cut by
                                                                0.2 mm, simultaneously in radial and axial directions.
              The following machining sequence is suggested:
              After completing the longitudinal turning, before starting   Plunge again and repeat same cycle leaving steps
              the grooving, the side deflection must be released.   of 0.2 mm at the shoulders for the finishing cut.
              Move the tool in the direction opposite that of the feed,   Minimum D.O.C. has to be ap≥Rx1.2 (corner radius).
              approximately 0.1 mm, and return to the original position   Finishing
              without side load.                                Plunge on the right side, reaching the tangent of the
              Then, after the deflection has been released and   bottom radius. Retract and relieve the tangent point
              the holder is perpendicular to the workpiece,     of the radius on the other side. Retract and machine
              the grooving operation may start.                 all of the contour, pulling back by compensation
                                                                value along the bottom (see page 423).
                                                                       Roughing              Finishing
                                                                 A                     D








                            Not recommended                            Roughing              Finishing
                                                                 B                     E



      TEXT                         0.1mm




                                                                 C     Finishing       F     Finishing







                                                                These instructions can be viewed at:
                                                                http://www.youtube.com/watch?v=HXhEtc1zl4w













                 Prior move         Actual move
