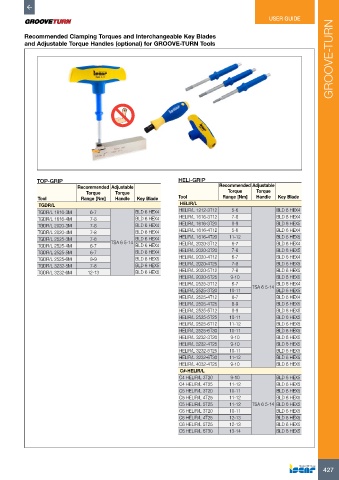

USER GUIDE
GROOVE-TURN

Recommended Clamping Torques and Interchangeable Key Blades
and Adjustable Torque Handles (optional) for GROOVE-TURN Tools

TOP-GRIP HELI-GRIP
Recommended Adjustable Recommended Adjustable
Torque Torque Torque Torque
Tool Range [Nm] Handle Key Blade Tool Range [Nm] Handle Key Blade
TGDR/L HELIR/L
TGDR/L 1616-3M 6-7 BLD 6 HEX4 HELIR/L 1212-3T12 5-6 BLD 6 HEX4
TGDR/L 1616-4M 7-8 BLD 6 HEX4 HELIR/L 1616-3T12 7-8 BLD 6 HEX4
TGDR/L 2020-3M 7-8 BLD 6 HEX4 HELIR/L 1616-3T20 8-9 BLD 6 HEX5
TGDR/L 2020-4M 7-8 BLD 6 HEX4 HELIR/L 1616-4T12 5-6 BLD 6 HEX4
TGDR/L 2525-3M 7-8 TSA 6 5-14 BLD 6 HEX4 HELIR/L 1616-4T20 11-12 BLD 6 HEX5
TGDR/L 2525-4M 6-7 BLD 6 HEX4 HELIR/L 2020-3T12 6-7 BLD 6 HEX4
TGDR/L 2525-5M 6-7 BLD 6 HEX4 HELIR/L 2020-3T20 7-8 BLD 6 HEX5
TGDR/L 2525-6M 8-9 BLD 6 HEX5 HELIR/L 2020-4T12 6-7 BLD 6 HEX4
TGDR/L 3232-5M 7-8 BLD 6 HEX5 HELIR/L 2020-4T25 7-8 BLD 6 HEX5
TGDR/L 3232-6M 12-13 BLD 6 HEX5 HELIR/L 2020-5T12 7-8 BLD 6 HEX5 TEXT
HELIR/L 2020-5T25 9-10 BLD 6 HEX5
HELIR/L 2525-3T12 6-7 TSA 6 5-14 BLD 6 HEX4
HELIR/L 2525-3T20 10-11 BLD 6 HEX5
HELIR/L 2525-4T12 6-7 BLD 6 HEX4
HELIR/L 2525-4T25 8-9 BLD 6 HEX5
HELIR/L 2525-5T12 8-9 BLD 6 HEX5
HELIR/L 2525-5T25 10-11 BLD 6 HEX5
HELIR/L 2525-6T12 11-12 BLD 6 HEX5
HELIR/L 2525-6T30 10-11 BLD 6 HEX5
HELIR/L 3232-3T20 9-10 BLD 6 HEX5
HELIR/L 3232-4T25 9-10 BLD 6 HEX5
HELIR/L 3232-5T25 10-11 BLD 6 HEX5
HELIR/L 3232-6T30 11-12 BLD 6 HEX5
HELIR/L 4032-4T25 9-10 BLD 6 HEX5
C#-HELIR/L
C4 HELIR/L 3T20 9-10 BLD 6 HEX5
C4 HELIR/L 4T25 11-12 BLD 6 HEX5
C5 HELIR/L 3T20 10-11 BLD 6 HEX5
C5 HELIR/L 4T25 11-12 BLD 6 HEX5
C5 HELIR/L 5T25 11-12 TSA 6 5-14 BLD 6 HEX5
C6 HELIR/L 3T20 10-11 BLD 6 HEX5
C6 HELIR/L 4T25 12-13 BLD 6 HEX5
C6 HELIR/L 5T25 12-13 BLD 6 HEX5
C6 HELIR/L 6T30 13-14 BLD 6 HEX5
