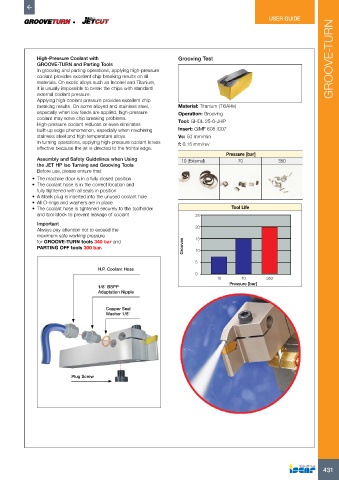

USER GUIDE
                           •






              High-Pressure Coolant with                        Grooving Test                                         GROOVE-TURN
              GROOVE-TURN and Parting Tools
              In grooving and parting operations, applying high-pressure
              coolant provides excellent chip breaking results on all
              materials. On exotic alloys such as Inconel and Titanium,
              it is usually impossible to break the chips with standard
              external coolant pressure.
              Applying high coolant pressure provides excellent chip
              breaking results. On some alloyed and stainless steel,   Material: Titanium (Ti6Al4v)
              especially when low feeds are applied, high-pressure   Operation: Grooving
              coolant may solve chip breaking problems.         Tool: GHDL 25-6-JHP
              High-pressure coolant reduces or even eliminates
              built-up edge phenomenon, especially when machining   Insert: GIMF 608 IC07
              stainless steel and high temperature alloys.      Vc: 50 mm/min
              In turning operations, applying high-pressure coolant is less   f: 0.15 mm/rev
              effective because the jet is directed to the frontal edge.
                                                                                Pressure [bar]
              Assembly and Safety Guidelines when Using          10 (External)       70            350
              the JET HP Iso Turning and Grooving Tools
              Before use, please ensure that:
            •  The machine door is in a fully closed position
            •  The coolant hose is in the correct location and
              fully tightened with all seals in position
            •  A blank plug is inserted into the unused coolant hole
            •  All O-rings and washers are in place
            •  The coolant hose is tightened securely to the toolholder           Tool Life
              and tool block to prevent leakage of coolant            25
              Important
              Always pay attention not to exceed the                  20
              maximum safe working pressure
              for GROOVE-TURN tools 340 bar and                       15
              PARTING OFF tools 300 bar.                         Grooves  10

                                                                      5
                                   H.P. Coolant Hose
                                                                      0                                               TEXT
                                                                             10       70       350
                                                                                  Pressure [bar]
                                    1/8” BSPP
                                    Adaptation Nipple

                                      Copper Seal
                                      Washer 1/8”












                          Plug Screw
