USER GUIDE

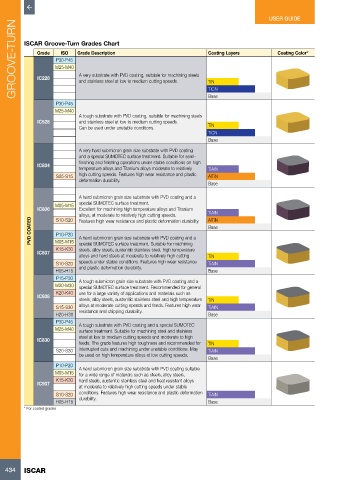

      GROOVE-TURN  ISCAR Groove-Turn Grades Chart                         Coating Layers          Coating Color*





                      ISO
                            Grade Description
              Grade
                     P30-P45
                    M25-M40
                             A very substrate with PVD coating, suitable for machining steels
              IC228
                             and stainless steel at low to medium cutting speeds.
                                                                          TiN
                                                                          Base
                     P30-P45                                              TICN
                    M25-M40
                             A tough substrate with PVD coating, suitable for machining steels
              IC528          and stainless steel at low to medium cutting speeds.
                             Can be used under unstable conditions.       TiN
                                                                          TiCN
                                                                          Base
                             A very hard submicron grain size substrate with PVD coating
                             and a special SUMOTEC surface treatment. Suitable for semi-
              IC804          finishing and finishing operations under stable conditions on high
                             temperature alloys and Titanium alloys moderate to relatively   TiAlN
                     S05-S15  high cutting speeds. Features high wear resistance and plastic   AlTiN
                             deformation durability.
                                                                          Base
                             A hard submicron grain size substrate with PVD coating and a
                    M05-M15  special SUMOTEC surface treatment.
              IC806          Excellent for machining high temperature alloys and Titanium
                             alloys, at moderate to relatively high cutting speeds.    TiAlN
            PVD COATED  P10-P20  A hard submicron grain size substrate with PVD coating and a   Base
                                                                          AlTiN
                     S10-S20
                             Features high wear resistance and plastic deformation durability.
                    M05-M15
                     K15-K30  special SUMOTEC surface treatment. Suitable for machining
                             steels, alloy steels, austenitic stainless steel, high temperature
              IC807
                             alloys and hard steels at moderate to relatively high cutting   TiN
      TEXT           H05-H15  and plastic deformation durability.         Base
                             speeds under stable conditions. Features high wear resistance
                                                                          TiAlN
                     S10-S20
                     P15-P30
                             A tough submicron grain size substrate with PVD coating and a
                    M20-M30
                     K20-K40  special SUMOTEC surface treatment. Recommended for general
                             use for a large variety of applications and materials such as
              IC808
                             steels, alloy steels, austenitic stainless steel and high temperature   TiN
                     S15-S30  alloys at moderate cutting speeds and feeds. Features high wear   TiAIN
                     H20-H30  resistance and chipping durability.         Base
                     P30-P45  A tough substrate with PVD coating and a special SUMOTEC
                    M25-M40  surface treatment. Suitable for machining steel and stainless
                             steel at low to medium cutting speeds and moderate to high
              IC830
                             feeds. The grade features high toughness and recommended for   TiN
                     S20-S30  interrupted cuts and machining under unstable conditions. May   TiAlN
                             be used on high temperature alloys at low cutting speeds.
                                                                          Base
                     P10-P20  A hard submicron grain size substrate with PVD coating suitable
                    M05-M15  for a wide range of materials such as steels, alloy steels,
                     K15-K30  hard steels, austenitic stainless steel and heat resistant alloys
              IC907
                             at moderate to relatively high cutting speeds under stable
                     S10-S20  conditions. Features high wear resistance and plastic deformation   TiAlN
                     H05-H15  durability.                                 Base
          * For coated grades
