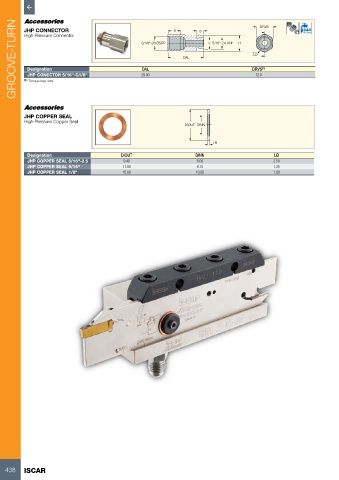

GROOVE-TURN JHP CONNECTOR G1/8”-28 BSPP 9 OAL 6 4 5/16”-24 UNF 11 DRVS DRVS Bar Max
High-Pressure Connector

13

Designation
OAL
(1)
JHP CONECTOR 5/16"-G1/8"
25.00
12.0
(1) Torque key size

JHP COPPER SEAL
High-Pressure Copper Seal
DIOUT DINN

LB
Designation DIOUT DINN LB
JHP COPPER SEAL 5/16"-2.5 9.40 8.00 2.50
JHP COPPER SEAL 5/16" 11.90 8.15 1.35
JHP COPPER SEAL 1/8" 15.00 10.00 1.00
