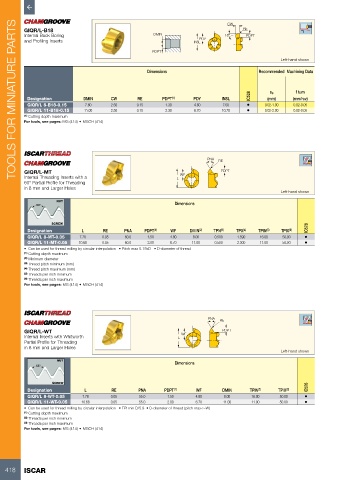

Page 420 - ISCAR(TURNING-CATALOG-42-2022)
P. 420

CW
      TOOLS FOR MINIATURE PARTS
          GIQR/L-B18                                                                  RE
          Internal Back Boring                         DMIN                     18°    PDPT
          and Profiling Inserts                                      INSL PDY

                                                       PDPT
                                                                                                    Left-hand shown
                                                     Dimensions                             Recommended  Machining Data



                                                                                         IC528  ap       f turn
           Designation        DMIN      CW       RE       PDPT (1)   PDY       INSL            (mm)     (mm/rev)
           GIQR/L 8-B18-0.15   7.80     2.50     0.15      1.30      4.60      7.60     •     0.02-1.00  0.02-0.05
           GIQR/L 11-B18-0.15  11.00    2.50     0.15      2.30      6.70      10.70    •     0.02-2.00  0.02-0.05
          (1)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)





                                                                          PNA   RE
          GIQR/L-MT                                             WF             PDPT
          Internal Threading Inserts with a                    L
          60° Partial Profile for Threading
          in 8 mm and Larger Holes
                                                                                                    Left-hand shown
                     NUT
              60°                                             Dimensions


                   SCREW
           Designation        L      RE      PNA    PDPT (1)  WF    DMIN (2)  TPN (3)  TPX (4)  TPIN (5)  TPIX (6)  IC528
           GIQR/L 8-MT-0.05  7.78    0.05    60.0    1.50    4.80    8.00   0.500   1.590   16.00   50.00   •
           GIQR/L 11-MT-0.05  10.68  0.05    60.0    2.00    6.70   11.00   0.500   2.300   11.00   50.00   •
          •  Can be used for thread milling by circular interpolation   • Pitch max 0.19xD   • D-diameter of thread
          (1)  Cutting depth maximum
          (2)  Minimum diameter
          (3)  Thread pitch minimum (mm)
          (4)  Thread pitch maximum (mm)
          (5)  Threads per inch minimum
          (6)  Threads per inch maximum
          For tools, see pages: MG (414) • MGCH (414)




                                                                          PNA   RE
          GIQR/L-WT                                                            PDPT
          Internal Inserts with Whitworth                       L  WF
          Partial Profile for Threading
          in 8 mm and Larger Holes
                                                                                                    Left-hand shown
                     NUT
              55°                                             Dimensions


                   SCREW
           Designation         L        RE        PNA      PDPT (1)   WF       DMIN      TPIN (2)  TPIX (3)  IC528
           GIQR/L 8-WT-0.05   7.78      0.05      55.0      1.50      4.80      8.00     16.00     50.00    •
           GIQR/L 11-WT-0.05  10.68     0.05      55.0      2.00      6.70     11.00     11.00     50.00    •
          •  Can be used for thread milling by circular interpolation   • TPI min D/5.9  • D-diameter of thread (pitch max<=W)
          (1)  Cutting depth maximum
          (2)  Threads per inch minimum
          (3)  Threads per inch maximum
          For tools, see pages: MG (414) • MGCH (414)
