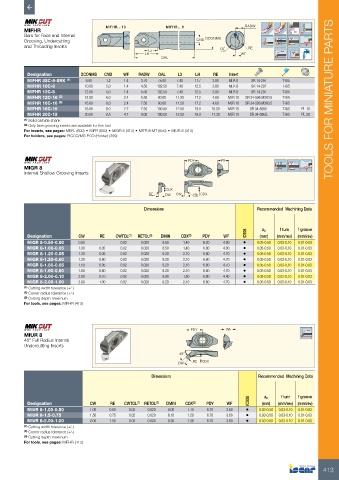

Page 415 - ISCAR(TURNING-CATALOG-42-2022)
P. 415
MIFHR MIFHR... 10 MIFHR... 8 RADW
Bars for Face and Internal DCONMS
Grooving, Undercutting CND
and Threading Inserts RE
L3 RE
LH WF
OAL
Designation DCONMS CND WF RADW OAL L3 LH RE Insert
MIFHR 8SC-8-SRK (1) 8.00 1.2 1.4 3.70 75.00 7.40 11.7 3.80 MI.R 8 SR 14-297 T-8/5
MIFHR 10C-8 10.00 5.0 1.4 4.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5
MIFHR 12C-8 12.00 5.0 1.4 5.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5
MIFHR 12C-10 (2) 12.00 6.0 2.4 5.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5 TOOLS FOR MINIATURE PARTS
MIFHR 16C-10 (2) 16.00 6.0 2.4 7.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5
MIFHR 16C-15 16.00 8.0 2.7 7.50 100.00 12.50 19.0 10.30 MI.R 15 SR 34-506/L T-9/5 PL 16
MIFHR 20C-15 20.00 8.5 4.7 9.00 100.00 12.50 19.0 11.30 MI.R 15 SR 34-506/L T-9/5 PL 20
(1) Solid carbide shank
(2) Only face grooving inserts are available for this tool
For inserts, see pages: MEFL (600) • MIFR (600) • MIGR 8 (413) • MITR 8-MT (650) • MIUR 8 (413)
For holders, see pages: PICCO/MG PCO (Holder) (399)
PDY WF
MIGR 8
Internal Shallow Grooving Inserts
CDX
RE CW CW RE CDX
Dimensions Recommended Machining Data
IC908 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) DMIN CDX (3) PDY WF (mm) (mm/rev) (mm/rev)
MIGR 8-0.50-0.00 0.50 - 0.02 0.020 8.50 1.40 6.30 4.00 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.00-0.05 1.00 0.05 0.02 0.020 8.50 1.40 6.80 4.00 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.20-0.05 1.20 0.05 0.02 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.20-0.60 1.20 0.60 0.02 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.50-0.05 1.50 0.05 0.02 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-1.60-0.80 1.60 0.80 0.02 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-2.00-0.10 2.00 0.10 0.02 0.020 8.90 1.80 6.80 4.40 • 0.05-0.50 0.03-0.10 0.01-0.03
MIGR 8-2.00-1.00 2.00 1.00 0.02 0.020 9.20 2.10 6.80 4.70 • 0.05-0.50 0.03-0.10 0.01-0.03
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: MIFHR (413)
PDY WF
MIUR 8
45° Full Radius Internal
Undercutting Inserts
45°
CW RE CDX
Dimensions Recommended Machining Data
IC908 ap f turn f groove
Designation CW RE CWTOL (1) RETOL (2) DMIN CDX (3) PDY WF (mm) (mm/rev) (mm/rev)
MIUR 8-1.00-0.50 1.00 0.50 0.02 0.020 8.00 1.10 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03
MIUR 8-1.5-0.75 1.50 0.75 0.02 0.020 8.10 1.20 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03
MIUR 8-2.00-1.00 2.00 1.00 0.02 0.020 8.30 1.36 6.70 3.60 • 0.03-0.50 0.03-0.10 0.01-0.03
(1) Cutting width tolerance (+/-)
(2) Corner radius tolerance (+/-)
(3) Cutting depth maximum
For tools, see pages: MIFHR (413)
413
