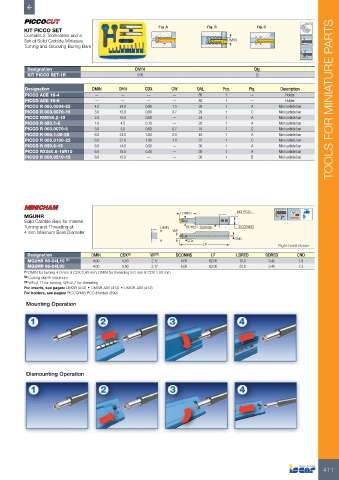

Page 413 - ISCAR(TURNING-CATALOG-42-2022)

KITS
KIT PICCO SET Fig. A Fig. B Fig. C
Contains 2 Toolholders and a
Set of Solid Carbide Miniature DMIN
Turning and Grooving Boring Bars

Designation DMIN Qty
KIT PICCO SET-1R 3.00 12

Designation DMIN OHN CDX CW OAL Pcs. Fig. Description
PICCO ACE 16-4 — — — — 85 1 — Holder
PICCO ACE 16-6 — — — — 85 1 — Holder TOOLS FOR MINIATURE PARTS
PICCO R 080.0004-25 4.0 24.0 0.80 1.5 39 1 A Mini carbide bar
PICCO R 003.0070-16 3.0 15.0 0.60 0.7 29 1 C Mini carbide bar
PICCO RM050.2-10 2.0 10.0 0.08 — 24 1 A Mini carbide bar
PICCO R 050.1-5 1.0 4.5 0.10 — 20 1 A Mini carbide bar
PICCO R 003.0070-5 3.0 5.0 0.60 0.7 19 1 C Mini carbide bar
PICCO R 006.1.00-25 6.0 24.0 1.80 2.0 40 1 A Mini carbide bar
PICCO R 006.0100-22 6.0 21.0 1.80 1.0 37 1 C Mini carbide bar
PICCO R 050.6-15 6.0 14.0 0.50 — 30 1 A Mini carbide bar
PICCO RX050.6-15R10 6.0 15.0 0.40 — 30 1 A Mini carbide bar
PICCO R 006.0510-15 6.0 15.0 — — 30 1 B Mini carbide bar

MGUHR LDRED MG PCO...
Solid Carbide Bars for Internal
Turning and Threading at DMIN BDRED Carbide DCONMS
4 mm Minimum Bore Diameter WF
CDX CND
LF Right-hand shown
Designation DMIN CDX (2) WF (3) DCONMS LF LDRED BDRED CND
MGUHR 06-04L10 (1) 4.00 0.50 2.17 6.00 62.00 10.0 3.45 1.3
MGUHR 06-04L20 4.00 0.50 2.17 6.00 62.00 20.0 3.45 1.3
(1) DMIN for turning 4.0 mm & CDX 0.43 mm; DMIN for threading 5.0 mm & CDX 1.00 mm
(2) Cutting depth maximum
(3) WF=2.17 for turning, WF=2.7 for threading
For inserts, see pages: UMGR (412) • UMGR-A55 (412) • UMGR-A60 (412)
For holders, see pages: PICCO/MG PCO (Holder) (399)
Mounting Operation

Dismounting Operation
