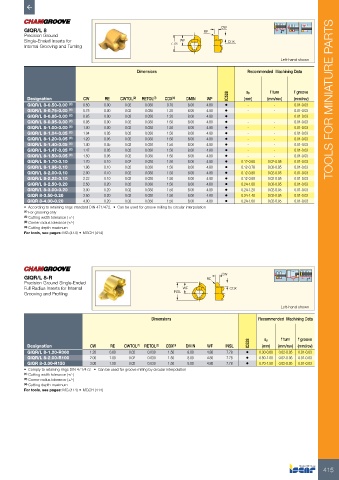

GIQR/L 8                                                       RE    CW
          Precision Ground
          Single-Ended Inserts for                              WF               CDX
          Internal Grooving and Turning                      7.78

                                                                                                    Left-hand shown
                                                 Dimensions                             Recommended  Machining Data



                                                                                 IC528  ap      f turn  f groove
           Designation        CW      RE   CWTOL (2)  RETOL (3)  CDX (4)  DMIN  WF     (mm)    (mm/rev)  (mm/rev)     TOOLS FOR MINIATURE PARTS
           GIQR/L 8-0.50-0.00  (1)  0.50  0.00  0.02  0.030  0.70  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-0.75-0.00  (1)  0.75  0.00  0.02  0.030  1.20  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-0.85-0.00  (1)  0.85  0.00  0.02  0.030  1.20  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-0.95-0.00  (1)  0.95  0.00  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.00-0.00  (1)  1.00  0.00  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.04-0.05  (1)  1.04  0.05  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.20-0.05  (1)  1.20  0.05  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.40-0.05  (1)  1.40  0.05  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.47-0.05  (1)  1.47  0.05  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.50-0.05  (1)  1.50  0.05  0.02  0.030  1.50  8.00   4.80  •       -        -      0.01-0.03
           GIQR/L 8-1.70-0.10  1.70   0.10   0.02   0.030   1.50   8.00   4.80  •     0.12-0.68  0.02-0.05  0.01-0.03
           GIQR/L 8-1.96-0.10  1.96   0.10   0.02   0.030   1.50   8.00   4.80  •     0.12-0.78  0.02-0.05  0.01-0.03
           GIQR/L 8-2.00-0.10  2.00   0.10   0.02   0.030   1.50   8.00   4.80  •     0.12-0.80  0.02-0.05  0.01-0.03
           GIQR/L 8-2.22-0.10  2.22   0.10   0.02   0.030   1.50   8.00   4.80  •     0.12-0.88  0.02-0.05  0.01-0.03
           GIQR/L 8-2.50-0.20  2.50   0.20   0.02   0.030   1.50   8.00   4.80  •     0.24-1.00  0.02-0.05  0.01-0.03
           GIQR/L 8-3.00-0.20  3.00   0.20   0.02   0.030   1.50   8.00   4.80  •     0.24-1.20  0.02-0.05  0.01-0.03
           GIQR 8-3.50-0.20   3.50    0.20   0.02   0.030   1.50   8.00   4.80  •     0.24-1.40  0.02-0.05  0.01-0.03
           GIQR 8-4.00-0.20   4.00    0.20   0.02   0.030   1.50   8.00   4.80  •     0.24-1.60  0.02-0.05  0.01-0.03
          •  According to retaining rings standard DIN 471/472.  •  Can be used for groove milling by circular interpolation
          (1)  For grooving only
          (2)  Cutting width tolerance (+/-)
          (3)  Corner radius tolerance (+/-)
          (4)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)






          GIQR/L 8-R                                                      RE   CW
          Precision Ground Single-Ended
          Full Radius Inserts for Internal                       WF               CDX
          Grooving and Profiling                              INSL

                                                                                                    Left-hand shown
                                                      Dimensions                            Recommended  Machining Data



                                                                                                    f turn
                                                                                                          f groove
                                                                                              ap
           Designation           CW     RE   CWTOL (1)  RETOL (2)  CDX (3)  DMIN  WF  INSL  IC528  (mm)  (mm/rev)  (mm/rev)
           GIQR/L 8-1.20-R060    1.20  0.60   0.02   0.030  1.50   8.00   4.80   7.78  •    0.30-0.60  0.02-0.05  0.01-0.03
           GIQR/L 8-2.00-R100    2.00  1.00   0.02   0.030  1.50   8.00   4.80   7.78  •    0.50-1.00  0.02-0.05  0.01-0.03
           GIQR 8-3.00-R150      3.00  1.50   0.02   0.030  1.50   8.00   4.80   7.78  •    0.70-1.50  0.02-0.05  0.01-0.03
          •  Comply to retaining rings DIN 471/472   •  Can be used for groove milling by circular interpolation
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)
