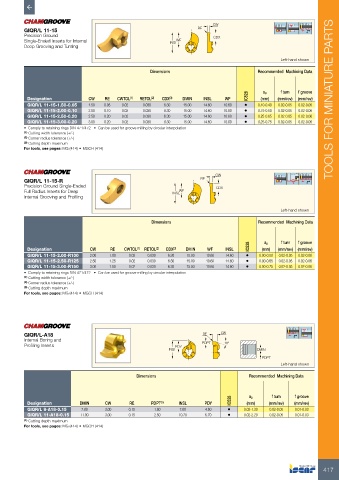

P. 419

CW
          GIQR/L 11-15                                                RE
          Precision Ground                                                  CDX
          Single-Ended Inserts for Internal                  INSL WF
          Deep Grooving and Turning

                                                                                                    Left-hand shown
                                                      Dimensions                            Recommended  Machining Data



                                                                                        IC528  ap   f turn  f groove
           Designation          CW    RE  CWTOL (1)  RETOL (2)  CDX (3)  DMIN  INSL  WF      (mm)  (mm/rev)  (mm/rev) TOOLS FOR MINIATURE PARTS
           GIQR/L 11-15-1.50-0.05  1.50  0.05  0.02  0.030  6.30  15.00  14.60  10.60  •    0.10-0.40  0.02-0.05  0.02-0.06
           GIQR/L 11-15-2.00-0.10  2.00  0.10  0.02  0.030  6.30  15.00  14.60  10.60  •    0.15-0.50  0.02-0.05  0.02-0.06
           GIQR/L 11-15-2.50-0.20  2.50  0.20  0.02  0.030  6.30  15.00  14.60  10.60  •    0.25-0.65  0.02-0.05  0.02-0.06
           GIQR/L 11-15-3.00-0.20  3.00  0.20  0.02  0.030  6.30  15.00  14.60  10.60  •    0.25-0.75  0.02-0.05  0.02-0.06
          •  Comply to retaining rings DIN 471/472   •  Can be used for groove milling by circular interpolation
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)

                                                                             CW

          GIQR/L 11-15-R                                               RE
          Precision Ground Single-Ended                                      CDX
          Full Radius Inserts for Deep                        INSL WF
          Internal Grooving and Profiling


                                                                                                    Left-hand shown
                                                      Dimensions                            Recommended  Machining Data



                                                                                        IC528  ap   f turn  f groove
           Designation           CW     RE   CWTOL (1)  RETOL (2)  CDX (3)  DMIN  WF  INSL   (mm)  (mm/rev)  (mm/rev)
           GIQR/L 11-15-2.00-R100  2.00  1.00  0.02  0.030  6.30   15.00  10.60  14.60  •   0.00-0.50  0.02-0.05  0.02-0.06
           GIQR/L 11-15-2.50-R125  2.50  1.25  0.02  0.030  6.30   15.00  10.60  14.60  •   0.00-0.65  0.02-0.05  0.02-0.06
           GIQR/L 11-15-3.00-R150  3.00  1.50  0.02  0.030  6.30   15.00  10.60  14.60  •   0.00-0.75  0.02-0.05  0.02-0.06
          •  Comply to retaining rings DIN 471/472   •  Can be used for groove milling by circular interpolation
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)





          GIQR/L-A18                                                    RE     CW
          Internal Boring and                                           PDPT    18°
          Profiling Inserts                                    PDY
                                                            INSL                           DMIN
                                                                                             PDPT
                                                                                                    Left-hand shown

                                                 Dimensions                             Recommended  Machining Data



                                                                                  IC528  ap     f turn   f groove
           Designation       DMIN     CW      RE      PDPT (1)  INSL     PDY            (mm)   (mm/rev)  (mm/rev)
           GIQR/L 8-A18-0.15  7.80    3.00    0.15     1.60     7.60     4.60    •     0.02-1.30  0.02-0.05  0.01-0.03
           GIQR/L 11-A18-0.15  11.00  3.00    0.15     2.50     10.70    6.70    •     0.02-2.20  0.02-0.05  0.01-0.03
          (1)  Cutting depth maximum
          For tools, see pages: MG (414) • MGCH (414)
