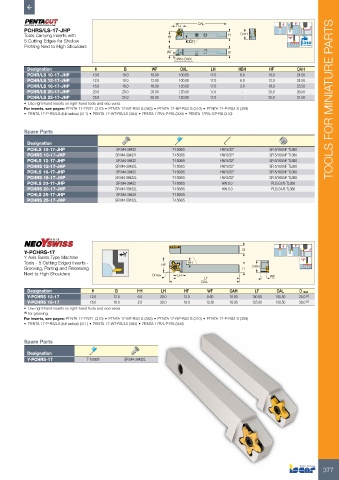

P. 379
OAL
PCHRS/LS-17-JHP LH
Tools Carrying Inserts with HF H OAH
5 Cutting Edges for Shallow HBH
Profiling Next to High Shoulders Bar Max
WF B
CWN-CWX
Designation H B WF OAL LH HBH HF OAH
PCHR/LS 10-17-JHP 10.0 10.0 10.00 100.00 17.0 8.0 10.0 24.50
PCHR/LS 12-17-JHP 12.0 12.0 12.00 100.00 17.0 6.0 12.0 24.50
PCHR/LS 16-17-JHP 16.0 16.0 16.00 120.00 17.0 3.0 16.0 25.50
PCHR/LS 20-17-JHP 20.0 20.0 20.00 120.00 17.0 - 20.0 26.50
PCHR/LS 25-17-JHP 25.0 25.0 25.00 120.00 17.0 - 25.0 31.50 TOOLS FOR MINIATURE PARTS
• Use right-hand inserts on right-hand tools and vice versa
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309) • PENTA 17R/L-SP-RS (310)
Spare Parts
Designation
PCHLS 10-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 10-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 12-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 12-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 16-17-JHP SR M4-39432 T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHRS 16-17-JHP SR M4-39432L T-1508/5 HW 5/32" SR 5/16UNF TL360
PCHLS 20-17-JHP SR M4-39432 T-1508/5 HW 5.0 PLG G1/8 TL360
PCHRS 20-17-JHP SR M4-39432L T-1508/5 HW 5.0 PLG G1/8 TL360
PCHLS 25-17-JHP SR M4-39432 T-1508/5
PCHRS 25-17-JHP SR M4-39432L T-1508/5
Y-PCHRS-17 B
Y Axis Swiss Type Machine
Tools - 5 Cutting Edged Inserts - HF HH
Grooving, Parting and Recessing H OAH
Next to High Shoulders Dmax LH
LF WF
OAL
Designation H B HH LH HF WF OAH LF OAL D max
Y-PCHRS 12-17 12.0 12.0 6.0 20.0 12.0 8.60 18.00 100.00 105.50 25.0 (1)
Y-PCHRS 16-17 16.0 16.0 2.0 20.0 16.0 12.30 18.00 125.00 130.50 38.0
(1)
• Use right-hand inserts on right-hand tools and vice versa
(1) for grooving
For inserts, see pages: PENTA 17-ER/EL (310) • PENTA 17-MT-RS/LS (383) • PENTA 17-NP-RS/LS (310) • PENTA 17-P-RS/LS (309)
• PENTA 17-P-RS/LS (full radius) (311) • PENTA 17-WT-RS/LS (383) • PENTA 17R/L-P-RS (309)
Spare Parts
Designation
Y-PCHRS-17 T-1508/5 SR M4-39432L
