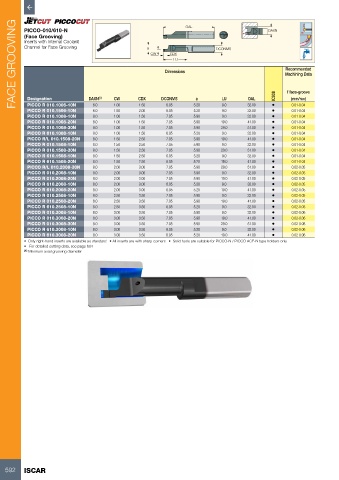

Page 594 - ISCAR(TURNING-CATALOG-42-2022)

FACE GROOVING a CW Dimensions OAL DCONMS DAXN Machining Data
PICCO-010/610-N
(Face Grooving)
Inserts with Internal Coolant

Channel for Face Grooving
CDX
LU
Recommended

Designation
a
(mm/rev)
OAL
PICCO R 010.1006-10N
6.0
1.50
6.05
1.00
9.0
0.01-0.04
•
PICCO R 010.1506-10N DAXN (1) CW CDX DCONMS 5.20 LU 32.00 • IC908 f face-groove
0.01-0.04
6.0
9.0
32.00
5.20
2.00
6.05
1.50
PICCO R 010.1008-10N 8.0 1.00 1.50 7.05 5.90 9.0 32.00 • 0.01-0.04
PICCO R 010.1008-20N 8.0 1.00 1.50 7.05 5.90 19.0 41.00 • 0.01-0.04
PICCO R 010.1008-30N 8.0 1.00 1.50 7.05 5.90 29.0 51.00 • 0.01-0.04
PICCO R 610.1008-10N 8.0 1.00 1.50 6.05 5.20 9.0 32.00 • 0.01-0.04
PICCO R/L 010.1508-20N 8.0 1.50 2.50 7.05 5.90 19.0 41.00 • 0.01-0.04
PICCO R 010.1508-10N 8.0 1.50 2.50 7.05 5.90 9.0 32.00 • 0.01-0.04
PICCO R 010.1508-30N 8.0 1.50 2.50 7.05 5.90 29.0 51.00 • 0.01-0.04
PICCO R 610.1508-10N 8.0 1.50 2.50 6.05 5.20 9.0 32.00 • 0.01-0.04
PICCO R 610.1508-20N 8.0 1.50 2.50 6.05 5.20 19.0 41.00 • 0.01-0.04
PICCO R/L 010.2008-30N 8.0 2.00 3.00 7.05 5.90 29.0 51.00 • 0.02-0.05
PICCO R 010.2008-10N 8.0 2.00 3.00 7.05 5.90 9.0 32.00 • 0.02-0.05
PICCO R 010.2008-20N 8.0 2.00 3.00 7.05 5.90 19.0 41.00 • 0.02-0.05
PICCO R 610.2008-10N 8.0 2.00 3.00 6.05 5.20 9.0 32.00 • 0.02-0.05
PICCO R 610.2008-20N 8.0 2.00 3.00 6.05 5.20 19.0 41.00 • 0.02-0.05
PICCO R 010.2508-10N 8.0 2.50 3.50 7.05 5.90 9.0 32.00 • 0.02-0.05
PICCO R 010.2508-20N 8.0 2.50 3.50 7.05 5.90 19.0 41.00 • 0.02-0.05
PICCO R 610.2508-10N 8.0 2.50 3.50 6.05 5.20 9.0 32.00 • 0.02-0.05
PICCO R 010.3008-10N 8.0 3.00 3.50 7.05 5.90 9.0 32.00 • 0.02-0.06
PICCO R 010.3008-20N 8.0 3.00 3.50 7.05 5.90 19.0 41.00 • 0.02-0.06
PICCO R 010.3008-30N 8.0 3.00 3.50 7.05 5.90 29.0 51.00 • 0.02-0.06
PICCO R 610.3008-10N 8.0 3.00 3.50 6.05 5.20 9.0 32.00 • 0.02-0.06
PICCO R 610.3008-20N 8.0 3.00 3.50 6.05 5.20 19.0 41.00 • 0.02-0.06
• Only right-hand inserts are available as standard • All inserts are with sharp corners • Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
• For detailed cutting data, see page 604
(1) Minimum axial grooving diameter
