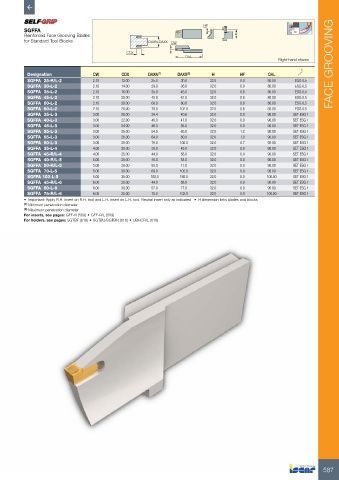

Page 589 - ISCAR(TURNING-CATALOG-42-2022)

SGFFA HF
Reinforced Face Grooving Blades H
for Standard Tool Blocks DAXN-DAXX CW

CDX
OAL
Right-hand shown FACE GROOVING

Designation CW CDX DAXN (1) DAXX (2) H HF OAL
SGFFA 25-R/L-2 2.10 13.00 25.0 30.0 32.0 0.0 80.00 ESG 0.5
SGFFA 30-L-2 2.10 14.00 29.0 36.0 32.0 0.0 80.00 ESG 0.5
SGFFA 35-L-2 2.10 16.00 35.0 46.0 32.0 0.8 80.00 ESG 0.5
SGFFA 45-L-2 2.10 20.00 45.0 61.0 32.0 0.8 80.00 ESG 0.5
SGFFA 60-L-2 2.10 20.00 60.0 80.0 32.0 0.8 80.00 ESG 0.5
SGFFA 80-L-2 2.10 20.00 79.0 102.0 32.0 0.8 80.00 ESG 0.5
SGFFA 35-L-3 3.00 20.00 34.4 40.6 32.0 0.0 90.00 SET ESG 1
SGFFA 40-L-3 3.00 22.00 40.0 47.0 32.0 0.0 90.00 SET ESG 1
SGFFA 46-L-3 3.00 24.00 46.0 55.0 32.0 0.0 90.00 SET ESG 1
SGFFA 55-L-3 3.00 25.00 54.0 65.0 32.0 1.2 90.00 SET ESG 1
SGFFA 65-L-3 3.00 26.00 64.0 80.0 32.0 1.0 90.00 SET ESG 1
SGFFA 80-L-3 3.00 28.00 79.0 100.0 32.0 0.7 95.00 SET ESG 1
SGFFA 35-L-4 4.00 25.00 35.0 45.0 32.0 0.0 90.00 SET ESG 1
SGFFA 45-R/L-4 4.00 25.00 44.0 58.0 32.0 0.0 90.00 SET ESG 1
SGFFA 40-R/L-5 5.00 25.00 40.0 52.0 32.0 0.0 90.00 SET ESG 1
SGFFA 50-R/L-5 5.00 28.00 50.0 71.0 32.0 0.0 95.00 SET ESG 1
SGFFA 70-L-5 5.00 30.00 69.0 102.0 32.0 0.0 95.00 SET ESG 1
SGFFA 100-L-5 5.00 35.00 100.0 180.0 32.0 0.0 100.00 SET ESG 1
SGFFA 45-R/L-6 6.00 25.00 44.0 58.0 32.0 0.0 90.00 SET ESG 1
SGFFA 60-L-6 6.00 30.00 57.0 77.0 32.0 0.0 95.00 SET ESG 1
SGFFA 75-R/L-6 6.00 35.00 75.0 102.0 32.0 0.0 100.00 SET ESG 1
• Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated • H dimension links blades and blocks
(1) Minimum penetration diameter
(2) Maximum penetration diameter
For inserts, see pages: GFF-N (589) • GFF-R/L (589)
For holders, see pages: SGTBF (618) • SGTBU/SGTBN (616) • UBHCR/L (618)

587
