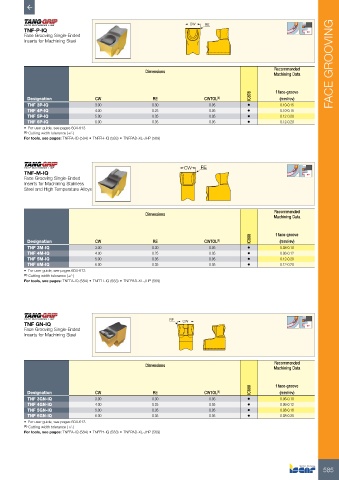

CW RE
TNF-P-IQ
Face Grooving Single-Ended
Inserts for Machining Steel

Dimensions Recommended FACE GROOVING
Machining Data

IC808 f face-groove
Designation CW RE CWTOL (1) (mm/rev)
TNF 3P-IQ 3.00 0.30 0.05 • 0.10-0.15
TNF 4P-IQ 4.00 0.25 0.05 • 0.10-0.15
TNF 5P-IQ 5.00 0.35 0.05 • 0.12-0.20
TNF 6P-IQ 6.00 0.35 0.05 • 0.12-0.20
• For user guide, see pages 604-613
(1) Cutting width tolerance (+/-)
For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

CW RE
TNF-M-IQ
Face Grooving Single-Ended
Inserts for Machining Stainless
Steel and High Temperature Alloys

Recommended
Dimensions
Machining Data

IC808 f face-groove
Designation CW RE CWTOL (1) (mm/rev)
TNF 3M-IQ 3.00 0.30 0.05 • 0.08-0.10
TNF 4M-IQ 4.00 0.25 0.05 • 0.08-0.12
TNF 5M-IQ 5.00 0.35 0.05 • 0.12-0.20
TNF 6M-IQ 6.00 0.35 0.05 • 0.12-0.20
• For user guide, see pages 604-613
(1) Cutting width tolerance (+/-)
For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

TNF GN-IQ RE CW
Face Grooving Single-Ended
Inserts for Machining Steel

Recommended
Dimensions
Machining Data

IC808 f face-groove
Designation CW RE CWTOL (1) (mm/rev)
TNF 3GN-IQ 3.00 0.30 0.05 • 0.06-0.10
TNF 4GN-IQ 4.00 0.25 0.05 • 0.06-0.12
TNF 5GN-IQ 5.00 0.35 0.05 • 0.08-0.16
TNF 6GN-IQ 6.00 0.35 0.05 • 0.08-0.20
• For user guide, see pages 604-613
(1) Cutting width tolerance (+/-)
For tools, see pages: TNFFA-IQ (584) • TNFFH-IQ (583) • TNFPAD-XL-JHP (569)

585
