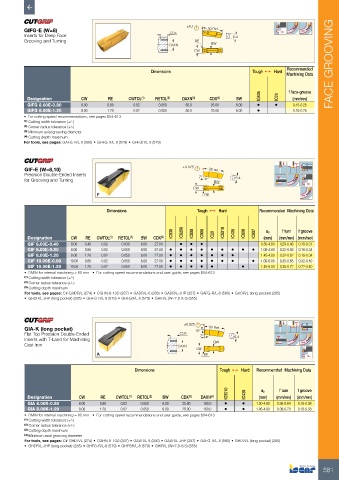

P. 583

GIFG-E (W=8)                                             ±0.1   30 Ref.
          Inserts for Deep Face                              CDX                   6.4
          Grooving and Turning                                       RE
                                                            DAXN           BW
                                                                     CW


                                                      Dimensions                          Tough 1   Hard  Recommended    FACE GROOVING
                                                                                                      Machining Data


                                                                                            IC635     f face-groove
           Designation        CW       RE     CWTOL (1)  RETOL (2)  DAXN (3)  CDX (4)  BW          IC20  (mm/rev)
           GIFG 8.00E-0.80    8.00     0.80     0.02     0.050    50.0     25.00    6.00   •      •     0.15-0.25
           GIFG 8.00E-1.20    8.00     1.20     0.02     0.050    50.0     25.00    6.00   •            0.15-0.25
          •  For cutting speed recommendations, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Minimum axial grooving diameter
          (4)  Cutting depth maximum
          For tools, see pages: GAFG-R/L-8 (580) • GHFG-R/L-8 (579) • GHFGR/L-8 (579)


          GIF-E (W=8,10)                                         ±0.025   30 Ref.
          Precision Double-Ended Inserts                               7°
          for Grooving and Turning                                          BW      6.4
                                                                     CW
                                                                         RE


                                       Dimensions                     Tough 1   Hard        Recommended  Machining Data


                                                              IC830  IC8250  IC808  IC908  IC20  IC5010  IC428  IC806  IC807  ap  f turn  f groove
           Designation    CW   RE  CWTOL (1)  RETOL (2)  BW  CDX (3)                          (mm)  (mm/rev) (mm/rev)
           GIF 8.00E-0.40  8.00  0.40  0.02  0.030  6.00  27.00  •  •  •                     0.50-4.80  0.29-0.48  0.18-0.31
           GIF 8.00E-0.80  8.00  0.80  0.02  0.050  6.00  27.00  •  •  •  •  •  •  •  •   •  1.00-4.80  0.32-0.56  0.18-0.34
           GIF 8.00E-1.20  8.00  1.20  0.02  0.050  6.00  27.00  •  •  •  •  •  •  •         1.45-4.80  0.32-0.62  0.18-0.34
           GIF 10.00E-0.80  10.00  0.80  0.02  0.050  8.00  27.00  •  •  •  •  •  •  •    •  1.00-6.00  0.35-0.65  0.22-0.40
           GIF 10.00E-1.20  10.00  1.20  0.02  0.050  8.00  27.00  •  •  •  •  •      •      1.45-6.00  0.35-0.72  0.22-0.40
          •  DMIN for internal machining = 65 mm   •  For cutting speed recommendations and user guide, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Cutting depth maximum
          For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
          •  GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)


          GIA-K (long pocket)                                     ±0.025 15°  30   Ref.
          Flat Top Precision Double-Ended                       CDX    7°          6.4
          Inserts with T-Land for Machining                                 BW
          Cast Iron                                             DAXN
                                                                      CW
                                                                         RE

                                                Dimensions                    Tough 1   Hard  Recommended  Machining Data



                                                                                 IC5010  IC428  ap  f turn  f groove
           Designation       CW     RE    CWTOL (1)  RETOL (2)  BW  CDX (3)  DAXN (4)       (mm)  (mm/rev)  (mm/rev)
           GIA 8.00K-0.80    8.00   0.80   0.02   0.050   6.00   25.00  160.0   •     •    1.00-4.80  0.36-0.64  0.18-0.38
           GIA 8.00K-1.20    8.00   1.20   0.02   0.050   6.00   25.00  160.0   •     •    1.45-4.80  0.36-0.70  0.18-0.38
          •  DMIN for internal machining = 65 mm   •  For cutting speed recommendations and user guide, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Cutting depth maximum
          (4)  Minimum axial grooving diameter
          For tools, see pages: C#-GHDR/L (274) • CGHN-8-10D (287) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
          •  GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)


                                                                                                                   581
