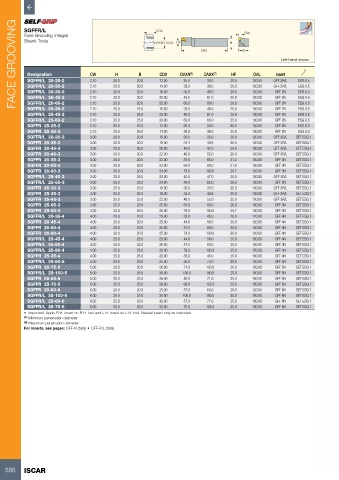

Page 588 - ISCAR(TURNING-CATALOG-42-2022)

FACE GROOVING SGFFR/L CW 20.0 20.0 DAXN-DAXX HF DAXN (1) OAL 30.0 (2) H 20.0 B CW 120.00 GFF 2R/L ESG 0.5
CDX
Face Grooving Integral
Shank Tools

Left-hand shown

H
OAL
HF
B
CDX
DAXX
Insert
Designation
SGFFR/L 20-25-2
2.10
13.00
25.0
SGFFR/L 20-30-2
2.10
20.0
29.0
14.00
36.0
ESG 0.5
20.0
GFF 2R/L
20.0
120.00
SGFFR/L 20-35-2
ESG 0.5
20.0
45.0
SGFFR/L 20-45-2
20.00
2.10
61.0
20.8
120.00
20.0
GFF 2N
ESG 0.5
20.0
20.0
120.00
20.8
SGFFR/L 20-60-2
GFF 2N
60.0
20.00
80.0
2.10
25.0
130.00
25.8
ESG 0.5
GFF 2N
16.00
25.0
46.0
35.0
2.10
SGFFR/L 25-35-2
61.0
130.00
20.00
25.8
45.0
25.0
ESG 0.5
GFF 2N
2.10
25.0
SGFFR/L 25-45-2 2.10 20.0 20.0 16.00 35.0 46.0 20.8 120.00 GFF 2N ESG 0.5
SGFFR/L 25-60-2 2.10 25.0 25.0 20.00 60.0 80.0 25.8 130.00 GFF 2N ESG 0.5
SGFFR 25-25-2 2.10 25.0 25.0 13.00 25.0 30.0 25.0 130.00 GFF 2N ESG 0.5
SGFFR 25-30-2 2.10 25.0 25.0 14.00 29.0 36.0 25.0 130.00 GFF 2N ESG 0.5
SGFFR/L 20-30-3 3.00 20.0 20.0 16.00 30.0 35.0 20.0 120.00 GFF 3R/L SET ESG 1
SGFFR 20-35-3 3.00 20.0 20.0 18.00 34.4 40.6 20.0 120.00 GFF 3R/L SET ESG 1
SGFFR 20-40-3 3.00 20.0 20.0 20.00 40.0 47.0 20.0 120.00 GFF 3R/L SET ESG 1
SGFFR 20-46-3 3.00 20.0 20.0 22.00 46.0 55.0 20.0 120.00 GFF 3R/L SET ESG 1
SGFFR 20-55-3 3.00 20.0 20.0 22.00 54.0 65.0 21.2 120.00 GFF 3N SET ESG 1
SGFFR 20-65-3 3.00 20.0 20.0 23.00 64.0 80.0 21.0 120.00 GFF 3N SET ESG 1
SGFFR 20-80-3 3.00 20.0 20.0 24.00 79.0 100.0 20.7 120.00 GFF 3N SET ESG 1
SGFFR/L 25-40-3 3.00 25.0 25.0 20.00 40.0 47.0 25.0 130.00 GFF 3R/L SET ESG 1
SGFFR/L 25-55-3 3.00 25.0 25.0 24.00 54.0 65.0 26.2 130.00 GFF 3N SET ESG 1
SGFFR 25-30-3 3.00 25.0 25.0 16.00 30.0 35.0 25.0 130.00 GFF 3R/L SET ESG 1
SGFFR 25-35-3 3.00 25.0 25.0 18.00 34.4 40.6 25.0 130.00 GFF 3R/L SET ESG 1
SGFFR 25-46-3 3.00 25.0 25.0 22.00 46.0 55.0 25.0 130.00 GFF 3R/L SET ESG 1
SGFFR 25-65-3 3.00 25.0 25.0 25.00 64.0 80.0 26.0 130.00 GFF 3N SET ESG 1
SGFFR 25-80-3 3.00 25.0 25.0 26.00 79.0 100.0 25.7 130.00 GFF 3N SET ESG 1
SGFFR/L 20-35-4 4.00 20.0 20.0 20.00 35.0 45.0 20.0 120.00 GFF 4N SET ESG 1
SGFFR 20-45-4 4.00 20.0 20.0 25.00 44.0 58.0 20.0 120.00 GFF 4N SET ESG 1
SGFFR 20-60-4 4.00 20.0 20.0 25.00 57.0 80.0 20.0 120.00 GFF 4N SET ESG 1
SGFFR 20-80-4 4.00 20.0 20.0 25.00 79.0 130.0 20.0 120.00 GFF 4N SET ESG 1
SGFFR/L 25-45-4 4.00 25.0 25.0 25.00 44.0 58.0 25.0 150.00 GFF 4N SET ESG 1
SGFFR/L 25-60-4 4.00 25.0 25.0 26.00 57.0 80.0 25.0 150.00 GFF 4N SET ESG 1
SGFFR/L 25-80-4 4.00 25.0 25.0 26.00 79.0 130.0 25.0 150.00 GFF 4N SET ESG 1
SGFFR 25-35-4 4.00 25.0 25.0 20.00 35.0 45.0 25.0 150.00 GFF 4N SET ESG 1
SGFFR/L 20-50-5 5.00 20.0 20.0 25.00 50.0 75.0 20.0 120.00 GFF 5N SET ESG 1
SGFFR 20-75-5 5.00 20.0 20.0 26.00 74.0 130.0 20.0 120.00 GFF 5N SET ESG 1
SGFFR/L 25-100-5 5.00 25.0 25.0 30.00 100.0 180.0 25.0 150.00 GFF 5N SET ESG 1
SGFFR 25-50-5 5.00 25.0 25.0 26.00 50.0 71.0 25.0 150.00 GFF 5N SET ESG 1
SGFFR 25-70-5 5.00 25.0 25.0 28.00 69.0 102.0 25.0 150.00 GFF 5N SET ESG 1
SGFFR 20-60-6 6.00 20.0 20.0 25.00 57.0 60.0 20.0 120.00 GFF 6N SET ESG 1
SGFFR/L 25-100-6 6.00 25.0 25.0 30.00 100.0 180.0 25.0 150.00 GFF 6N SET ESG 1
SGFFR/L 25-60-6 6.00 25.0 25.0 30.00 57.0 77.0 25.0 150.00 GFF 6N SET ESG 1
SGFFR/L 25-75-6 6.00 25.0 25.0 30.00 75.0 102.0 25.0 150.00 GFF 6N SET ESG 1
• Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated
(1) Minimum penetration diameter
(2) Maximum penetration diameter
For inserts, see pages: GFF-N (589) • GFF-R/L (589)
