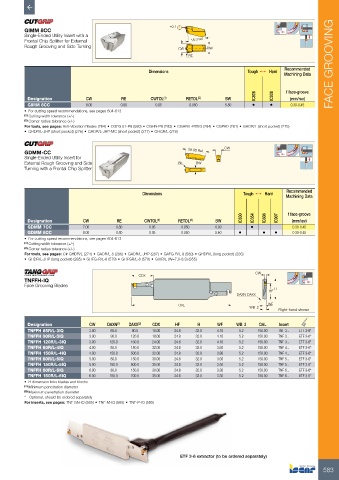

P. 585

GIMM 8CC                                           ±0.1
          Single-Ended Utility Insert with a
          Frontal Chip Splitter for External                        15.3 Ref.
          Rough Grooving and Side Turning                       CW        BW
                                                                   RE

                                                     Dimensions                         Tough 1   Hard  Recommended    FACE GROOVING
                                                                                                     Machining Data


                                                                                           IC808  IC908  f face-groove
           Designation         CW           RE        CWTOL (1)   RETOL (2)     BW                     (mm/rev)
           GIMM 8CC            8.00        0.80         0.05        0.050       5.80      •     •      0.30-0.45
          •  For cutting speed recommendations, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: Anti-Vibration Blades (284) • CGFG 51-P8 (580) • CGHN-P8 (283) • CGHR/L-P8DG (284) • CGPAD (281) • GHDR/L (short pocket) (275)
          •  GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278)


          GDMM-CC                                                  29.95 Ref.   CW
          Single-Ended Utility Insert for
          External Rough Grooving and Side                      RE    BW
          Turning with a Frontal Chip Splitter



                                                                                                      Recommended
                                                   Dimensions                         Tough 1   Hard
                                                                                                     Machining Data


                                                                                      IC830  IC354  IC808  IC907  f face-groove
           Designation        CW          RE        CWTOL (1)   RETOL (2)    BW                         (mm/rev)
           GDMM 7CC           7.00        0.80       0.05        0.050       6.00        •              0.30-0.45
           GDMM 8CC           8.00        0.80       0.05        0.050       5.60    •       •   •      0.30-0.45
          •  For cutting speed recommendations, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          For tools, see pages: C#-GHDR/L (274) • GADR/L-8 (286) • GADR/L-JHP (287) • GAFG-R/L-8 (580) • GHDR/L (long pocket) (285)
          •  GHDR/L-JHP (long pocket) (285) • GHFG-R/L-8 (579) • GHFGR/L-8 (579) • GHIR/L (W=7.0-8.3) (355)
                                                  CDX                                      CW

          TNFFH-IQ
          Face Grooving Blades
                                                                                               HF  H
                                                                                    DAXN-DAXX
                                                                OAL                            WF
                                                                                         WB_2
                                                                                                   Right-hand shown
           Designation          CW     DAXN (1)  DAXX (2)  CDX  HF    H      WF     WB_2    OAL    Insert
           TNFFH 65R/L-3IQ      3.00    65.0   90.0   18.00   24.8    32.0   4.10    5.2    150.00  TNF 3...  ETF 3-6*
           TNFFH 90R/L-3IQ      3.00    90.0   120.0  18.00   24.8    32.0   4.10    5.2    150.00  TNF 3...  ETF 3-6*
           TNFFH 120R/L-3IQ     3.00    120.0  160.0  24.00   24.8    32.0   4.10    5.2    150.00  TNF 3...  ETF 3-6*
           TNFFH 80R/L-4IQ      4.00    80.0   150.0  32.00   24.8    32.0   3.80    5.2    150.00  TNF 4...  ETF 3-6*
           TNFFH 150R/L-4IQ     4.00    150.0  500.0  32.00   24.8    32.0   3.80    5.2    150.00  TNF 4...  ETF 3-6*
           TNFFH 80R/L-5IQ      5.00    80.0   150.0  30.00   24.8    32.0   3.50    5.2    150.00  TNF 5...  ETF 3-6*
           TNFFH 150R/L-5IQ     5.00    150.0  500.0  35.00   24.8    32.0   3.50    5.2    150.00  TNF 5...  ETF 3-6*
           TNFFH 80R/L-6IQ      6.00    80.0   150.0  30.00   24.8    32.0   3.30    5.2    150.00  TNF 6...  ETF 3-6*
           TNFFH 150R/L-6IQ     6.00    150.0  700.0  35.00   24.8    32.0   3.30    5.2    150.00  TNF 6...  ETF 3-6*
          •  H dimension links blades and blocks
          (1)  Minimum penetration diameter
          (2)  Maximum penetration diameter
          *  Optional, should be ordered separately
          For inserts, see pages: TNF GN-IQ (585) • TNF-M-IQ (585) • TNF-P-IQ (585)










                                                                ETF 3-6 extractor (to be ordered separately)

                                                                                                                   583
