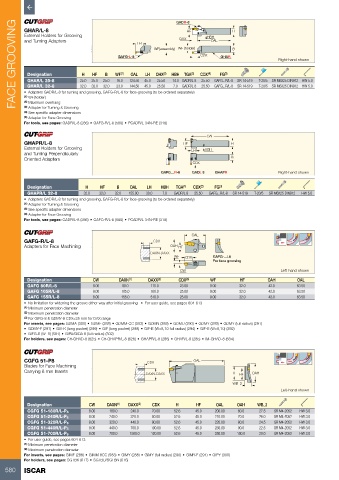

P. 582

FACE GROOVING  GHAR/L-8     25.0  25.0  25.0  WF (1)  124.50 LH  45.0  WF(assembly) WF (holder)  CDX HBH GAFG...R/L-8 H B  SR 14-519  T-20/5  SR M6X25 DIN912 HW 5.0
                                                               GADR-8
                                                                   HF
          External Holders for Grooving
                                                                OHX
                                                                           OAL
          and Turning Adapters
                                                                              GHAR
                                          GAFG-L-8
                                                                                                   Right-hand shown
                                                          (2)
                                                                          (4)
                                                                    (3)
                                                                                (5)
                                                                              FG
                                                                  TGA
                                                                       CDX
                                                             HBH
                                      B
                                               OAL
           Designation
                                 HF
                              H
                                                        OHX
                                                    LH
           GHAR/L 25-8
                                                              14.0 GADR/L 8
                                                        25.50
                                                                        25.50
                                          16.0
           GHAR/L 32-8
                                                              7.0
                                          23.0
                                     32.0
                                                    45.0
                                              144.50
                                                        25.50
                                                                            GAFG...R/L-8
                                 32.0
                             32.0
                                                                                                SR M6X25 DIN912 HW 5.0
                                                                        25.50
                                                                 GADR/L 8
                                                                                    SR 14-519
                                                                                            T-20/5
          •  Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)
          (1)  WF(holder)
          (2)  Maximum overhang
          (3)  Adapter for Turning & Grooving
          (4)  See specific adapter dimensions
          (5)  Adapter for Face Grooving
          For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)
                                                                          OAL

          GHAPR/L-8                                              HF               H
          External Holders for Grooving                             LH   HBH
          and Turning Perpendicularly
          Oriented Adapters                                                       B
                                                                     CDX
                                                          GAFG…R-8  GADL 8   GHAPR                 Right-hand shown
           Designation         H    HF    B    OAL   LH   HBH  TGA (1)  CDX (2)  FG (3)
           GHAPR/L 32-8       32.0  32.0  32.0  155.00  30.0  7.0  GADR/L 8  25.50  GAFG...R/L-8  SR 14-519  T-20/5  SR M6X25 DIN912  HW 5.0
          •  Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)
          (1)  Adapter for Turning & Grooving
          (2)  See specific adapter dimensions
          (3)  Adapter for Face Grooving
          For tools, see pages: GADR/L-8 (286) • GAFG-R/L-8 (580) • PCADR/L 34N-RE (318)
                                                                    OAL

          GAFG-R/L-8                                   CDX
          Adapters for Face Machining                        OAH  HF
                                                      DAXN-DAXX
                                                              WF  CDX       GAFG-...L8
                                                                            For face grooving
                                                                CW                                  Left-hand shown
           Designation            CW       DAXN (1)  DAXX (2)   CDX (3)    WF        HF        OAH       OAL
           GAFG 80R/L-8           8.00      80.0      115.0     23.00      9.00      32.0      42.0      63.50
           GAFG 105R/L-8          8.00      105.0     160.0     25.00      9.00      32.0      42.0      63.50
           GAFG 155R/L-8          8.00      155.0     510.0     25.00      9.00      32.0      42.0      63.50
          •  No limitation for widening the groove either way after initial grooving   •  For user guide, see pages 604-613
          (1)  Minimum penetration diameter
          (2)  Maximum penetration diameter
          (3)  For GIFG-8 & GDMY-8 CDX=25 mm for DAX range
          For inserts, see pages: GDMA (300) • GDMF (288) • GDMM-CC (583) • GDMN (289) • GDMU (290) • GDMY (289) • GDMY (full radius) (291)
          •  GDMY-F (291) • GIA-K (long pocket) (299) • GIF (long pocket) (298) • GIF-E (W=8,10 full radius) (294) • GIF-E (W=8,10) (292)
          •  GIFG-E (W=8) (581) • GIPA/GIDA 8 (full radius) (302)
          For holders, see pages: C#-GHAD-8 (625) • C#-GHAPR/L-8 (626) • GHAPR/L-8 (286) • GHAR/L-8 (285) • IM-GHAD-8 (634)


          CGFG 51-P8                                 CDX             OAL
          Blades for Face Machining
          Carrying 8 mm Inserts
                                                    DAXN-DAXX                      H  HF  OAH
                                                                                   WB_2
                                                                                                    Left-hand shown
           Designation          CW     DAXN (1)  DAXX (2)  CDX  H     HF     OAL    OAH    WB_2
           CGFG 51-180R/L-P8    8.00   180.0   240.0  70.00   52.6    45.0  200.00   60.0   27.5  SR M4-2052  HW 3.0
           CGFG 51-240R/L-P8    8.00   240.0   320.0  80.00   52.6    45.0  210.00   70.0   26.0  SR M4-2052  HW 3.0
           CGFG 51-320R/L-P8    8.00   320.0   440.0  90.00   52.6    45.0  220.00   80.0   24.5  SR M4-2052  HW 3.0
           CGFG 51-440R/L-P8    8.00   440.0   700.0  100.00  52.6    45.0  230.00   90.0   22.5  SR M4-2052  HW 3.0
           CGFG 51-700R/L-P8    8.00   700.0   1500.0  120.00  52.6   45.0  250.00  100.0   20.0  SR M4-2052  HW 3.0
          •  For user guide, see pages 604-613
          (1)  Minimum penetration diameter
          (2)  Maximum penetration diameter
          For inserts, see pages: GIMF (288) • GIMM 8CC (583) • GIMY (288) • GIMY (full radius) (290) • GIMY-F (291) • GIPY (300)
          For holders, see pages: SGTBK (617) • SGTBU/SGTBN (616)
   580    ISCAR
