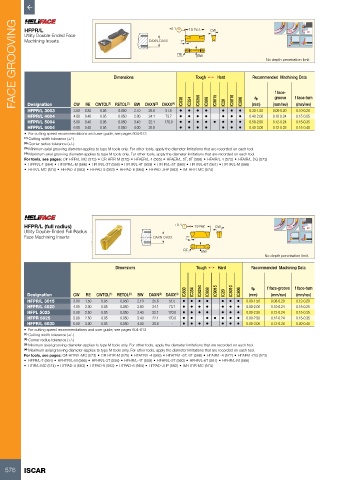

Page 578 - ISCAR(TURNING-CATALOG-42-2022)
P. 578

FACE GROOVING  HFPR/L              Dimensions  DAXN-DAXX  ±0.1  RE 7°  19 Ref.  CW  Recommended  Machining Data

          Utility Double-Ended Face
          Machining Inserts


                                                                      BW
                                                                                              No depth penetration limit

                                                                      Tough 1   Hard


                                                                                                  f face-
                                                                                   IC5010
                                                                       IC8250
                                                                                                 groove
                                                                                          ap
                                                                    IC354
                                                                 IC830
                                                                                IC20
           Designation
                           CW
                               RE
                                                                                          (mm)
                                                                                                         (mm/rev)
           HFPR/L 3003     3.00  0.30  CWTOL (1)  RETOL (2)  BW  DAXN (3)  DAXX (4)  • • • • IC808  IC9015  • • • IC806  0.30-1.50  (mm/rev)  f face-turn
                                           0.050
                                                           51.5
                                    0.05
                                                2.10
                                                                                                         0.10-0.20
                                                                                                 0.08-0.20
                                                     25.6
           HFPR/L 4004     4.00  0.40  0.05  0.050  2.80  24.1  73.7  • • • •  • • •     0.40-2.00  0.10-0.24  0.15-0.25
           HFPR/L 5004     5.00  0.40  0.05  0.050  3.40  22.1  170.0  • • • • • • • •   0.50-2.50  0.12-0.24  0.15-0.35
           HFPR/L 6004     6.00  0.40  0.05  0.050  4.00  20.8  -  • • • •     • • •     0.40-3.00  0.12-0.28  0.15-0.40
          •  For cutting speed recommendations and user guide, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.
          (4)  Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.
          For tools, see pages: C#-HFIR/L-MC (573) • CR HFIR-M (575) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573)
          •  HFFR/L-T (564) • HFHPR/L-M (566) • HFHR/L-3T (558) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFHR/L-M (566)
          •  HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • IM-HFIR-MC (574)


          HFPR/L (full radius)                                ±0.1   19 Ref.  CW
          Utility Double-Ended Full Radius
          Face Machining Inserts                       DAXN-DAXX  7°
                                                                 RE     BW
                                                                                              No depth penetration limit.
                                          Dimensions                  Tough 1   Hard     Recommended  Machining Data


                                                                  IC830  IC354  IC8250  IC808  IC9015  IC5010  IC806  ap  f face-groove  f face-turn
           Designation     CW  RE  CWTOL (1)  RETOL (2)  BW  DAXN (3)  DAXX (4)  IC20   (mm)    (mm/rev)  (mm/rev)
           HFPR/L 3015     3.00  1.50  0.05  0.050  2.10  25.6  51.5  • • • •  • • •    0.00-1.50  0.08-0.20  0.12-0.20
           HFPR/L 4020     4.00  2.00  0.05  0.050  2.80  24.1  73.7  • • • •  • • •    0.00-2.00  0.10-0.24  0.15-0.25
           HFPL 5025       5.00  2.50  0.05  0.050  3.40  22.1  170.0  • • • •  • • •   0.00-2.50  0.12-0.24  0.15-0.35
           HFPR 5025       5.00  2.50  0.05  0.050  3.40  22.1  170.0  • •  • • • • •   0.00-2.50  0.12-0.24  0.15-0.35
           HFPR/L 6030     6.00  3.00  0.05  0.050  4.00  20.8  -  • • • •     • • •    0.00-3.00  0.12-0.28  0.20-0.40
          •  For cutting speed recommendations and user guide, see pages 604-613
          (1)  Cutting width tolerance (+/-)
          (2)  Corner radius tolerance (+/-)
          (3)  Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.
          (4)  Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool.
          For tools, see pages: C#-HFIR/L-MC (573) • CR HFIR-M (575) • HFAER/L-4 (565) • HFAER/L-5T, 6T (566) • HFAIR/L-4 (572) • HFAIR/L-DG (573)
          •  HFFR/L-T (564) • HFHPR/L-M (566) • HFHR/L-3T (558) • HFHR/L-4T (559) • HFHR/L-5T (560) • HFHR/L-6T (561) • HFHR/L-M (566)
          •  HFIR/L-MC (574) • HFPAD-4 (563) • HFPAD-5 (563) • HFPAD-6 (564) • HFPAD-JHP (562) • IM-HFIR-MC (574)
