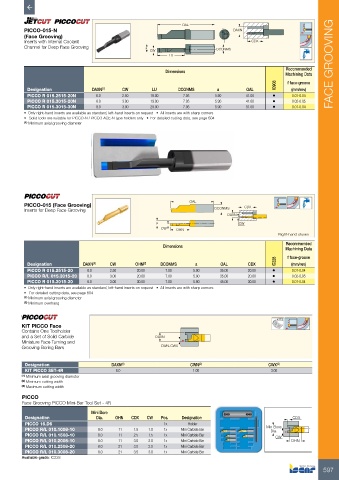

P. 599

OAL
          PICCO-015-N                                                              DAXN
          (Face Grooving)
          Inserts with Internal Coolant                                                  CDX
          Channel for Deep Face Grooving            a                        DCONMS
                                                      CW
                                                            LU

                                                           Dimensions                                Recommended      FACE GROOVING
                                                                                                     Machining Data
                                                                                                  IC908  f face-groove
           Designation           DAXN (1)   CW        LU        DCONMS       a          OAL            (mm/rev)
           PICCO R 015.2515-20N    8.0      2.50      19.00      7.05        5.90      41.00     •      0.01-0.04
           PICCO R 015.3015-20N    8.0      3.00      19.00      7.05        5.90      41.00     •      0.02-0.05
           PICCO R 015.3015-30N    8.0      3.00      29.00      7.05        5.90      51.00     •      0.01-0.04
          •  Only right-hand inserts are available as standard, left-hand inserts on request   •  All inserts are with sharp corners
          •   Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only   •  For detailed cutting data, see page 604
          (1)  Minimum axial grooving diameter














          PICCO-015 (Face Grooving)                                 OAL                CDX
          Inserts for Deep Face Grooving                                    DCONMS
                                                                                 DAXN
                                                        a                            CW
                                                          CW   OHN
                                                                                                   Right-hand shown
                                                                                                     Recommended
                                                          Dimensions
                                                                                                     Machining Data
                                                                                                  IC228  f face-groove
           Designation        DAXN (1)  CW       OHN (2)  DCONMS      a       OAL       CDX            (mm/rev)
           PICCO R 015.2515-20  8.0     2.50     20.00     7.00      5.90     35.00     20.00    •      0.01-0.04
           PICCO R/L 015.3015-20  8.0   3.00     20.00     7.00      5.90     35.00     20.00    •      0.02-0.05
           PICCO R 015.3015-30  8.0     3.00     30.00     7.00      5.90     45.00     30.00    •      0.01-0.04
          •  Only right-hand inserts are available as standard, left-hand inserts on request   •  All inserts are with sharp corners
          •   For detailed cutting data, see page 604
          (1)  Minimum axial grooving diameter
          (2)  Minimum overhang
                                                                                                  KITS

         KIT PICCO Face
         Contains One Toolholder
         and a Set of Solid Carbide                     DAXN
         Miniature Face Turning and
         Grooving Boring Bars                             CWN-CWX

          Designation                   DAXN (1)                    CWN (2)                    CWX (3)
          KIT PICCO SET-4R                8.0                        1.00                       3.00
         (1)  Minimum axial grooving diameter
         (2)  Minimum cutting width
         (3)  Maximum cutting width
         PICCO
         Face Grooving PICCO Mini-Bar Tool Set - 4R
                                 Mini Bore
          Designation              Dia.   OHN  CDX   CW   Pcs.   Designation                            CDX
          PICCO 16.D6                                      1x      Holder
          PICCO R/L 010.1008-10    8.0     11   1.5  1.0   1x    Mini Carbide Bar              Min Bore
                                                                                                Dia.
          PICCO R/L 010.1508-10    8.0     11   2.5  1.5   1x    Mini Carbide Bar                 CW
          PICCO R/L 010.2008-10    8.0     11   3.0  2.0   1x    Mini Carbide Bar                      OHN
          PICCO R/L 010.2508-20    8.0     21   3.5  2.5   1x    Mini Carbide Bar
          PICCO R/L 010.3008-20    8.0     21   3.5  3.0   1x    Mini Carbide Bar
           Available grade: IC228
