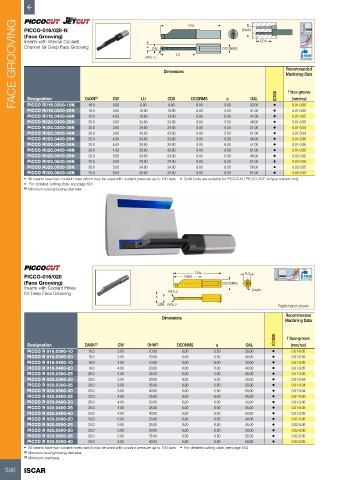

P. 598

FACE GROOVING  PICCO-016/020-N                RE0.2  Dimensions  OAL     DCONMS  DAXN  CDX     Machining Data

          (Face Grooving)
          Inserts with Internal Coolant
          Channel for Deep Face Grooving
                                                     a
                                                      CW
                                                               LU
                                                                                                            Bar Max
                                                                                                      Recommended




                                                            CDX
           Designation
                                                                                         OAL
                                                   LU
                                                                                 a
                                                                                                       (mm/rev)
           PICCO R016.0300-10N
                                                                      8.00
                                                            9.00
                                                  9.00
                                                                                                        0.01-0.05
                                         3.00
                                16.0
                                                                                                 •
           PICCO R016.0300-20N  DAXN (1)  CW      19.00     19.00   DCONMS      5.50     32.00   • IC908  f face-groove
                                                                      8.00
                                                                                         41.00
                                                                                5.50
                                         3.00
                                                                                                        0.01-0.05
                                16.0
           PICCO R016.0400-20N  16.0     4.00     19.00     19.00     8.00      6.00     41.00   •      0.01-0.05
           PICCO R020.0300-25N  20.0     3.00     24.00     24.00     8.00      5.50     46.00   •      0.01-0.05
           PICCO R020.0300-30N  20.0     3.00     29.00     29.00     8.00      5.50     51.00   •      0.01-0.04
           PICCO R020.0300-40N  20.0     3.00     39.00     39.00     8.00      5.50     61.00   •      0.01-0.04
           PICCO R020.0400-25N  20.0     4.00     24.00     24.00     8.00      6.00     46.00   •      0.01-0.06
           PICCO R020.0400-30N  20.0     4.00     29.00     29.00     8.00      6.00     51.00   •      0.01-0.06
           PICCO R020.0400-40N  20.0     4.00     39.00     39.00     8.00      6.00     61.00   •      0.01-0.05
           PICCO R020.0500-25N  20.0     5.00     24.00     24.00     8.00      6.50     46.00   •      0.02-0.06
           PICCO R020.0500-30N  20.0     5.00     29.00     29.00     8.00      6.50     51.00   •      0.02-0.06
           PICCO R020.0500-35N  20.0     5.00     34.00     34.00     8.00      6.50     56.00   •      0.02-0.05
           PICCO R020.0500-40N  20.0     5.00     39.00     39.00     8.00      6.50     61.00   •      0.02-0.05
          •  All inserts have two coolant holes which may be used with coolant pressure up to 100 bars    •  Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only
          •   For detailed cutting data, see page 604
          (1)  Minimum axial grooving diameter


         PICCO-016/020                                            OHN  OAL             6.3                  Bar Max
         (Face Grooving)                                                       DCONMS
         Inserts with Coolant Holes                                                      DAXN
         for Deep Face Grooving                             RE0.2
                                                        a
                                                        CW  RE0.2                                  Right-hand shown

                                                          Dimensions                                 Recommended
                                                                                                     Machining Data

                                                                                                  IC1008  f face-groove
           Designation         DAXN (1)   CW         OHN (2)   DCONMS        a         OAL             (mm/rev)
           PICCO R 016.0300-10  16.0      3.00       10.00       8.00       5.50       30.00     •     0.01-0.05
           PICCO R 016.0300-20  16.0      3.00       20.00       8.00       5.50       40.00     •     0.01-0.05
           PICCO R 016.0400-10  16.0      4.00       10.00       8.00       6.00       30.00     •     0.01-0.05
           PICCO R 016.0400-20  16.0      4.00       20.00       8.00       6.00       40.00     •     0.01-0.05
           PICCO R 020.0300-25  20.0      3.00       25.00       8.00       5.50       45.00     •     0.01-0.05
           PICCO R 020.0300-30  20.0      3.00       30.00       8.00       5.50       50.00     •     0.01-0.04
           PICCO R 020.0300-35  20.0      3.00       35.00       8.00       5.50       55.00     •     0.01-0.04
           PICCO R 020.0300-40  20.0      3.00       40.00       8.00       5.50       60.00     •     0.01-0.04
           PICCO R 020.0400-25  20.0      4.00       25.00       8.00       6.00       45.00     •     0.01-0.06
           PICCO R 020.0400-30  20.0      4.00       30.00       8.00       6.00       50.00     •     0.01-0.06
           PICCO R 020.0400-35  20.0      4.00       35.00       8.00       6.00       55.00     •     0.01-0.05
           PICCO R 020.0400-40  20.0      4.00       40.00       8.00       6.00       60.00     •     0.01-0.05
           PICCO R 020.0500-20  20.0      5.00       20.00       8.00       6.50       40.00     •     0.02-0.06
           PICCO R 020.0500-25  20.0      5.00       25.00       8.00       6.50       45.00     •     0.02-0.06
           PICCO R 020.0500-30  20.0      5.00       30.00       8.00       6.50       50.00     •     0.02-0.06
           PICCO R 020.0500-35  20.0      5.00       35.00       8.00       6.50       55.00     •     0.02-0.05
           PICCO R 020.0500-40  20.0      5.00       40.00       8.00       6.50       60.00     •     0.02-0.05
         •  All inserts have two coolant holes which may be used with coolant pressure up to 100 bars    •  For detailed cutting data, see page 604
         (1)  Minimum axial grooving diameter
         (2)  Minimum overhang
