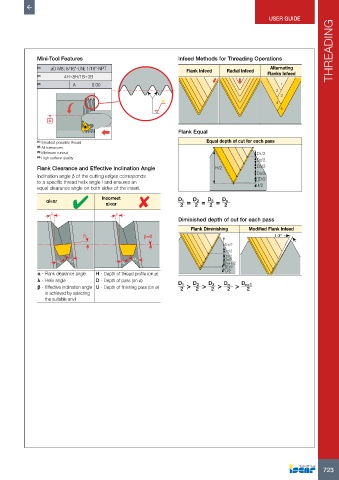

USER GUIDE
                                                                                                                      THREADING






              Mini-Tool Features                                Infeed Methods for Threading Operations
              (1)  øD M8; 5/16”-UN; 1/16”-NPT                     Flank Infeed   Radial Infeed  Alternating
              (2)       4H÷8H/1B÷3B                                                            Flanks Infeed
              (3)          A     0.00                                                               1
                                                                                                  2
                                                                                                    3
                                                                                                  4
                                                                                                    5

                  A
                                                                Flank Equal

              (1)  Smallest possible thread                               Equal depth of cut for each pass
              (2)  All tolerances
              (3)  Minimum runout
                                                                                           D1/2
              (4)  High surface quality
                                                                                           D2/2
              Flank Clearance and Effective Inclination Angle                H/2           D3/2
              Inclination angle β of the cutting edges corresponds                         Dn/2
              to a specific thread helix angle l and ensures an                             D/2
              equal clearance angle on both sides of the insert.                           U/2
                          4           αl<αr       8             2  1  =   =   =   2
                 αl=αr               Incorrect                  D    D    D    D
                                                                                n
                                                                      2
                                                                           3

                                                                           2


                                                                     2
                   λ                      λ
                                                                Diminished depth of cut for each pass
                                                                    Flank Diminishing   Modified Flank Infeed
                              β                     β =0                                          1-3°
                                                                                D1/2
                                                                                D2/2
                                                                                D3/2
                     α L   α R              α L   α R                           Dn/2
                                                                                Dn+1/2
                                                                                 D/2
              α - Flank clearance angle  H - Depth of thread profile (on ø)     U/2
              λ - Helix angle      D - Depth of pass (on ø)     D    D    D     D     D
              β - Effective inclination angle  U - Depth of finishing pass (on ø)  2  1  >   2   2   >   3   2   >   n   2    >   n+1
                                                                                        2

                 is achieved by selecting
                 the suitable anvil
