USER GUIDE

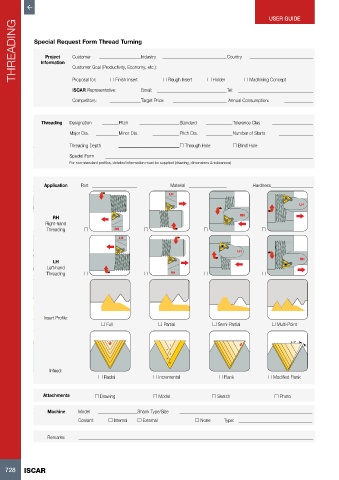

      THREADING  Special Request Form Thread Turning Industry                    Country






                 Project
                          Customer
               Information
                          Customer Goal (Productivity, Economy, etc.):
                          Proposal for:
                                        o Finish Insert
                          ISCAR Representative:    Email:  o Rough Insert  o Holder  Tel:  o Machining Concept
                          Competitors:             Target Price:                  Annual Consumption:



                Threading  Designation     Pitch                Standard           Tolerance Clas
                         Major Dia.        Minor Dia.           Pitch Dia.         Number of Starts

                         Threading Depth                        o Through Hole     o Blind Hole

                         Special Form
                         For non-standard profiles, detailed information must be supplied (drawing, dimensions & tolerances)



                 Application  Part                           Material                     Hardness
                                                            LH
                                                                                                          LH

                    RH                                                               RH
                 Right-hand
                 Threading     o         RH         o                    o                   o
                                           LH

                                                                                    LH
                                                                                                          RH
                    LH
                 Left-hand
                 Threading     o                    o        RH          o                   o








                Insert Profile:
                                     o Full              o Partial          o Semi-Partial      o Multi-Point



                                                                                                       1-3°
                                                             1
                                                           2
                                                             3
                                                           4
                                                             5
                  Infeed:
                                    o Radial           o Incremental          o Flank          o Modified Flank


                Attachments       o Drawing            o Model              o Sketch             o Photo


                  Machine    Model               Shank Type/Size
                             Coolant:   o Internal  o External        o None    Type:

                  Remarks:
