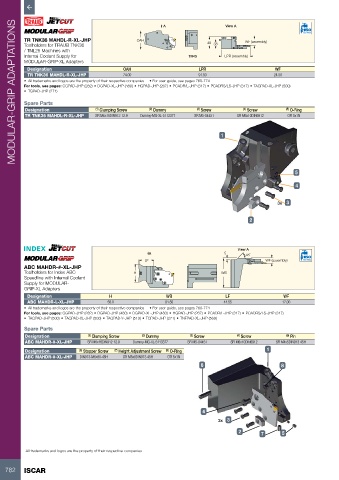

Page 784 - ISCAR(TURNING-CATALOG-42-2022)

MODULAR-GRIP ADAPTATIONS
A View A 150
Bar Max
TR TNK36 MAHDL-R-XL-JHP OAH WF (assembly)
Toolholders for TRAUB TNK36 48 38
/ TNL26 Machines with
Internal Coolant Supply for TR45 LPR (assembly)
MODULAR-GRIP-XL Adapters
Designation OAH LPR WF
TR TNK36 MAHDL-R-XL-JHP 74.00 91.50 24.50
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-XL-JHP (500)
• TGPAD-JHP (271)
Spare Parts
Designation (1) Clamping Screw (2) Dummy (3) Screw (4) Screw (5) O-Ring
TR TNK36 MAHDL-R-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR M5-04451 SR M6x10DIN6912 OR 5x1N

1

5

4

3x 3

2

5 View A
LF A 45˚ WF (assembly) 150
Bar Max
ABC MAHDR-#-XL-JHP
Toolholders for Index ABC H WB
Speedline with Internal Coolant
Supply for MODULAR-
GRIP-XL Adapters
Designation H WB LF WF
ABC MAHDR-L-XL-JHP 56.0 91.50 44.55 17.00
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • DGPAD-XL-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317)
• TAGPAD-JHP (500) • TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569)
Spare Parts
Designation (1) Clamping Screw (2) Dummy (3) Screw (4) Screw (5) Pin
ABC MAHDR-#-XL-JHP SR M6x16DIN912 12.9 Dummy-MG-XL-5113377 SR M5-04451 SR M6x10DIN6912 SR M4x5DIN913 45H
Designation (6) Stopper Screw (7) Height Adjustment Screw (8) O-Ring 1
ABC MAHDR-#-XL-JHP DIN913-M6x80-45H SR M5x8DIN913 45H OR 5x1N
6 8

4
3x 3
2 7 5

All trademarks and logos are the property of their respective companies
