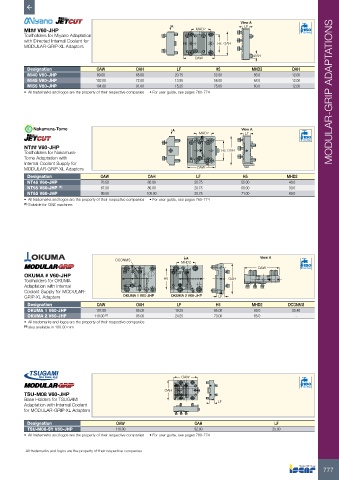

Page 779 - ISCAR(TURNING-CATALOG-42-2022)

View A
MI## V60-JHP A MHD2 LF 150
Toolholders for Miyano Adaptation Bar Max
with Directed Internal Coolant for H5 OAH
MODULAR-GRIP-XL Adapters
DAH
OAW
Designation OAW OAH LF H5 MHD2 DAH
MI40 V60-JHP 89.00 68.00 20.75 52.00 56.0 12.00
MI45 V60-JHP 102.00 72.00 13.95 56.00 68.0 12.00
MI55 V60-JHP 104.00 91.00 15.25 75.00 60.0 12.00
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774 MODULAR-GRIP ADAPTATIONS

Nakamura-Tome A MHD2 View A
LF
150
Bar Max
NT## V60-JHP
Toolholders for Nakamura- H5 OAH
Tome Adaptation with
Internal Coolant Supply for
MODULAR-GRIP-XL Adapters OAW
Designation OAW OAH LF H5 MHD2
NT45 V60-JHP 76.50 80.00 20.75 55.00 40.0
NT55 V60-JHP (1) 87.50 86.00 20.75 60.00 50.0
NT65 V60-JHP 99.50 100.00 20.75 71.00 69.0
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774
(1) Suitable for CMZ machines

DCONMS A View A
MHD2 OAW 150
Bar Max
OKUMA # V60-JHP
Toolholders for OKUMA H5 OAH
Adaptation with Internal
Coolant Supply for MODULAR-
GRIP-XL Adapters OKUMA 1 V60-JHP OKUMA 2 V60-JHP LF
Designation OAW OAH LF H5 MHD2 DCONMS
OKUMA 1 V60-JHP 107.00 85.00 19.25 65.00 80.0 55.40
OKUMA 2 V60-JHP 110.00 (1) 95.00 24.25 73.00 65.0 -
• All trademarks and logos are the property of their respective companies
(1) also available in 100.00 mm

OAW
150
Bar Max
TSU-M08 V60-JHP OAH
Base Holders for TSUGAMI LF
Adaptation with Internal Coolant
for MODULAR-GRIP-XL Adapters

Designation OAW OAH LF
TSU-M08-SY V60-JHP 110.00 92.00 25.00
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774

All trademarks and logos are the property of their respective companies
