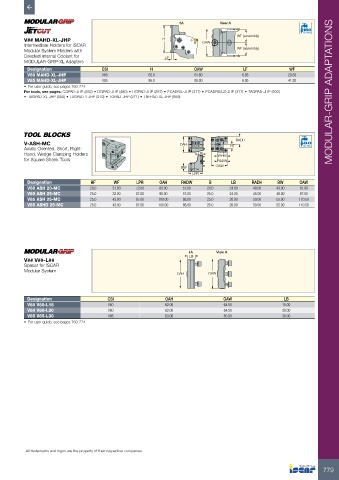

Page 781 - ISCAR(TURNING-CATALOG-42-2022)

A View A
150
Bar Max
V## MAHD-XL-JHP H OAW WF (assembly)
Intermediate Holders for ISCAR
Modular System Holders with WF (assembly)
Directed Internal Coolant for LF
MODULAR-GRIP-XL Adapters
Designation CSI H OAW LF WF
V60 MAHD-XL-JHP V60 62.0 61.60 6.05 29.50
V85 MAHD-XL-JHP V85 85.0 85.00 6.05 41.30
• For user guide, see pages 760-774
For tools, see pages: CGPAD-JHP (282) • DGPAD-JHP (480) • HGPAD-JHP (267) • PCADR/L-JHP (317) • PCADRS/LS-JHP (317) • TAGPAD-JHP (500) MODULAR-GRIP ADAPTATIONS
• TAGPAD-XL-JHP (500) • TAGPAD-Y-JHP (519) • TGPAD-JHP (271) • TNFPAD-XL-JHP (569)

V-ASH-MC OAH HF RADH 80
Bar Max
Axially Oriented, Short, Right-
Hand, Wedge Clamping Holders LB WF B
for Square Shank Tools RADW
BW OAW
LPR
Designation HF WF LPR OAH RADW B LB RADH BW OAW
V60 ASH 20-MC 20.0 31.00 72.00 80.00 51.00 20.0 24.00 40.00 43.00 81.00
V60 ASH 25-MC 25.0 32.00 87.00 90.00 57.00 25.0 24.00 45.00 48.00 87.00
V85 ASH 25-MC 25.0 43.00 87.00 100.00 68.00 25.0 26.00 50.00 55.00 110.50
V85 ASHD 25-MC 25.0 43.00 87.00 100.00 68.00 25.0 26.00 50.00 55.00 110.50

A View A
V## V##-L## LB
Spacer for ISCAR
Modular System
OAH OAW

Designation CSI OAH OAW LB
V60 V60-L15 V60 62.00 64.50 15.00
V60 V60-L30 V60 62.00 64.50 30.00
V85 V85-L30 V85 83.00 85.00 30.00
• For user guide, see pages 760-774
