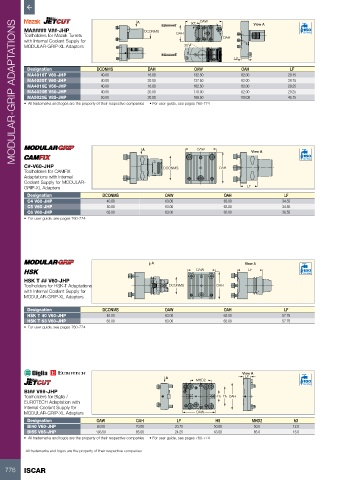

A 90˚ OAW View A
MODULAR-GRIP ADAPTATIONS
MA##### V##-JHP DCONMS MA####T 150
Toolholders for Mazak Turrets OAH DAH Bar Max
with Internal Coolant Supply for
MODULAR-GRIP-XL Adapters 30˚
MA####E
LF
Designation DCONMS DAH OAW OAH LF
MA4016T V60-JHP 40.00 16.00 132.50 62.00 28.15
MA4020T V60-JHP 40.00 20.00 137.50 62.00 28.15
MA4016E V60-JHP 40.00 16.00 162.50 62.00 29.25
MA4020E V60-JHP 40.00 20.00 170.00 62.00 29.25
MA5020E V85-JHP 50.00 20.00 168.50 100.00 45.75
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774

A OAW View A
150
Bar Max
C#-V60-JHP DCONMS OAH
Toolholders for CAMFIX
Adaptations with Internal
Coolant Supply for MODULAR-
GRIP-XL Adapters LF
Designation DCONMS OAW OAH LF
C4 V60-JHP 40.00 63.00 63.00 34.55
C5 V60-JHP 50.00 63.00 63.00 34.55
C6 V60-JHP 63.00 63.00 63.00 36.55
• For user guide, see pages 760-774

A View A
OAW LF 150
Bar Max
HSK T ## V60-JHP
Toolholders for HSK-T Adaptations DCONMS OAH
with Internal Coolant Supply for
MODULAR-GRIP-XL Adapters

Designation DCONMS OAW OAH LF
HSK T 40 V60-JHP 40.00 63.00 63.00 57.75
HSK T 63 V60-JHP 63.00 63.00 63.00 57.75
• For user guide, see pages 760-774

View A
LF
A
MHD2 150
Bar Max
BI## V##-JHP
Toolholders for Biglia / h3 H5 OAH
EUROTECH Adaptation with
Internal Coolant Supply for
MODULAR-GRIP-XL Adapters OAW
Designation OAW OAH LF H5 MHD2 h3
BI40 V60-JHP 83.00 70.00 20.75 50.00 50.0 12.0
BI55 V85-JHP 103.50 85.00 24.25 63.00 65.0 15.0
• All trademarks and logos are the property of their respective companies • For user guide, see pages 760-774

All trademarks and logos are the property of their respective companies
